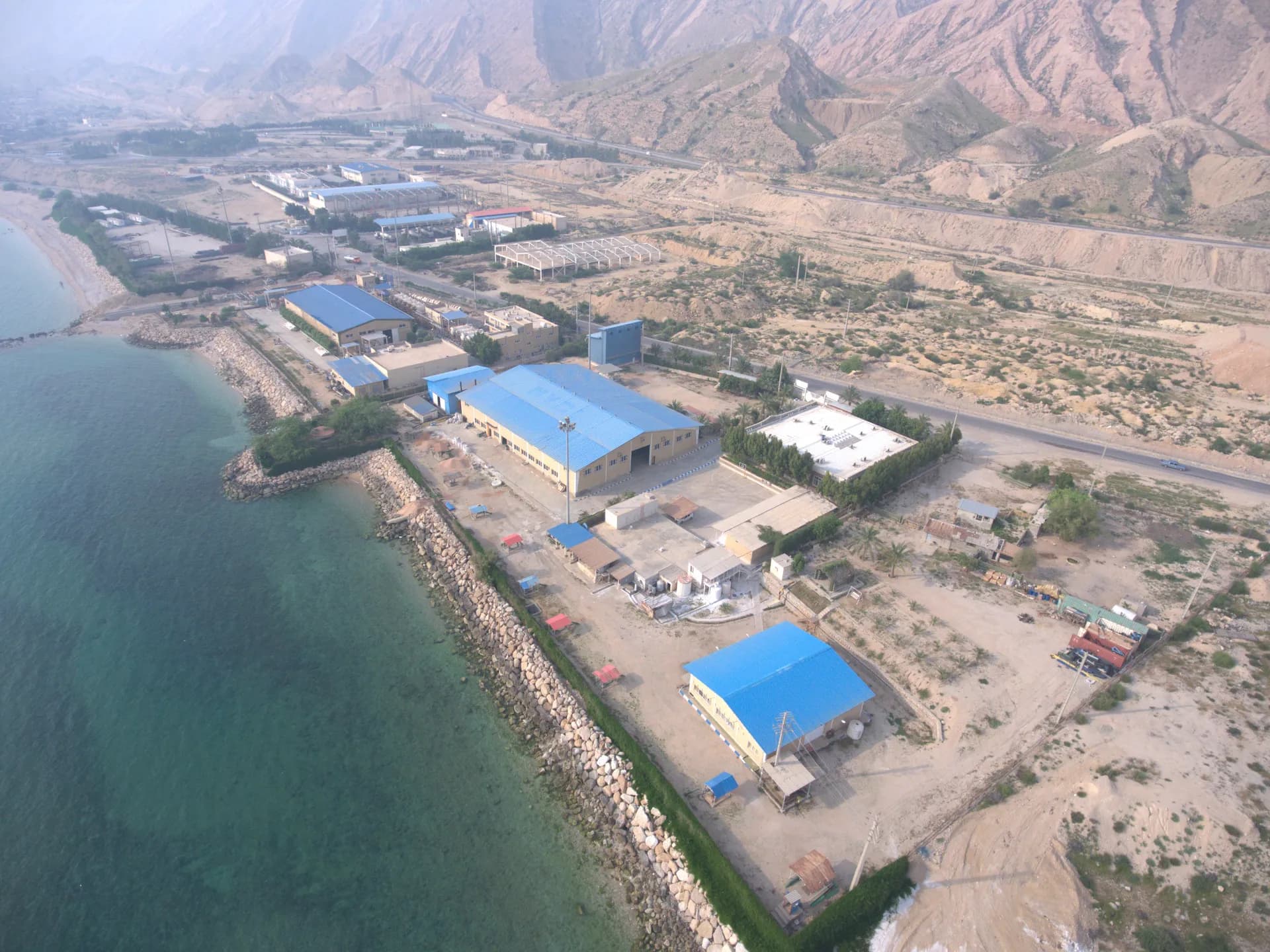

Chabahar

62,500 m3/day (Phase I , II, III) SWRO Desalination Plant



Specifications

Client Sistan and Baluchestan Province Water and Wastewater Company
Contract Supply of potable water to the city of Chabahar
Contract type B.O.O.T. for phase I and B.O.O for phase 2
Financing bank Export Development Bank of Iran
Phase I
Contract awarded 2011
Duration to start up 10 months
Contract period 10 years form start up
Contractual capacity 15,000 m3/day
Final nominal capacity 17,500 m3/day
Phase II
Contract awarded 2013
Duration to start up 10 months
Contract period 10 years form start up
Contractual capacity 15,000 m3/day
Final nominal capacity 17,500 m3/day
Phase III
Contract awarded 2022
Duration to startup 24 months
Contract period Up to 2038
Contractual capacity 20,000 m3/day
Final nominal capacity 22,500 m3/day



1. After the successful construction and operation of Phase I, the contract for the second and third phases of the desalination plants were won in a separate tenders.

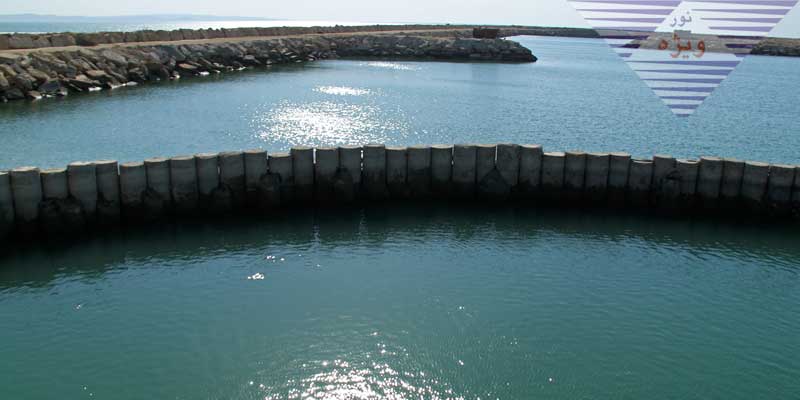

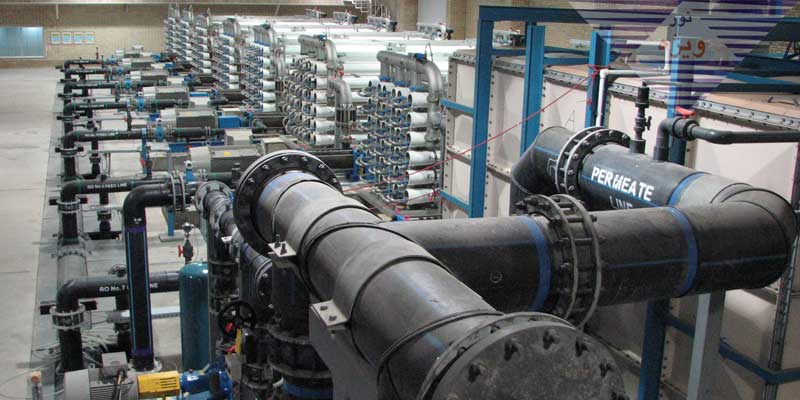

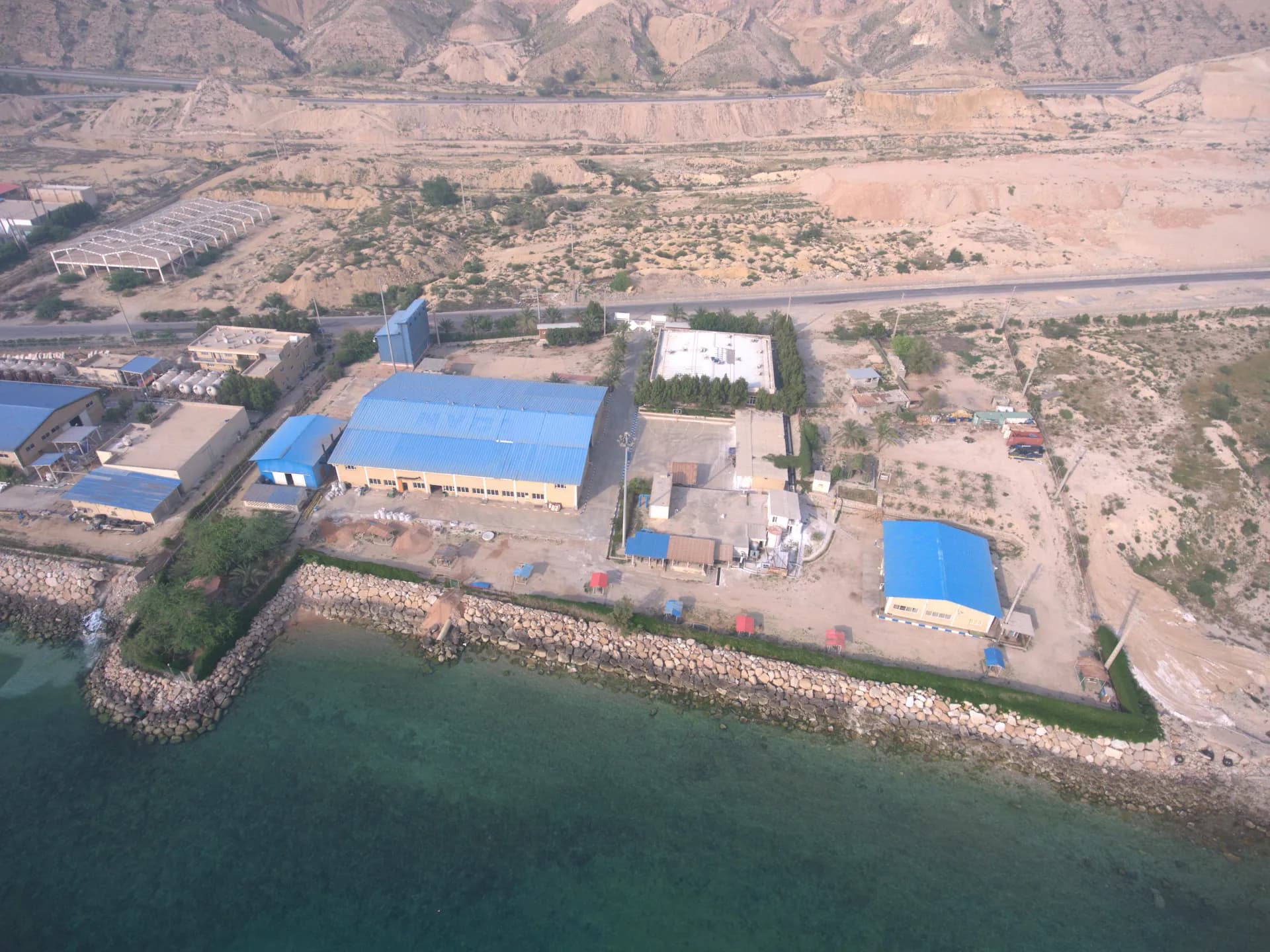

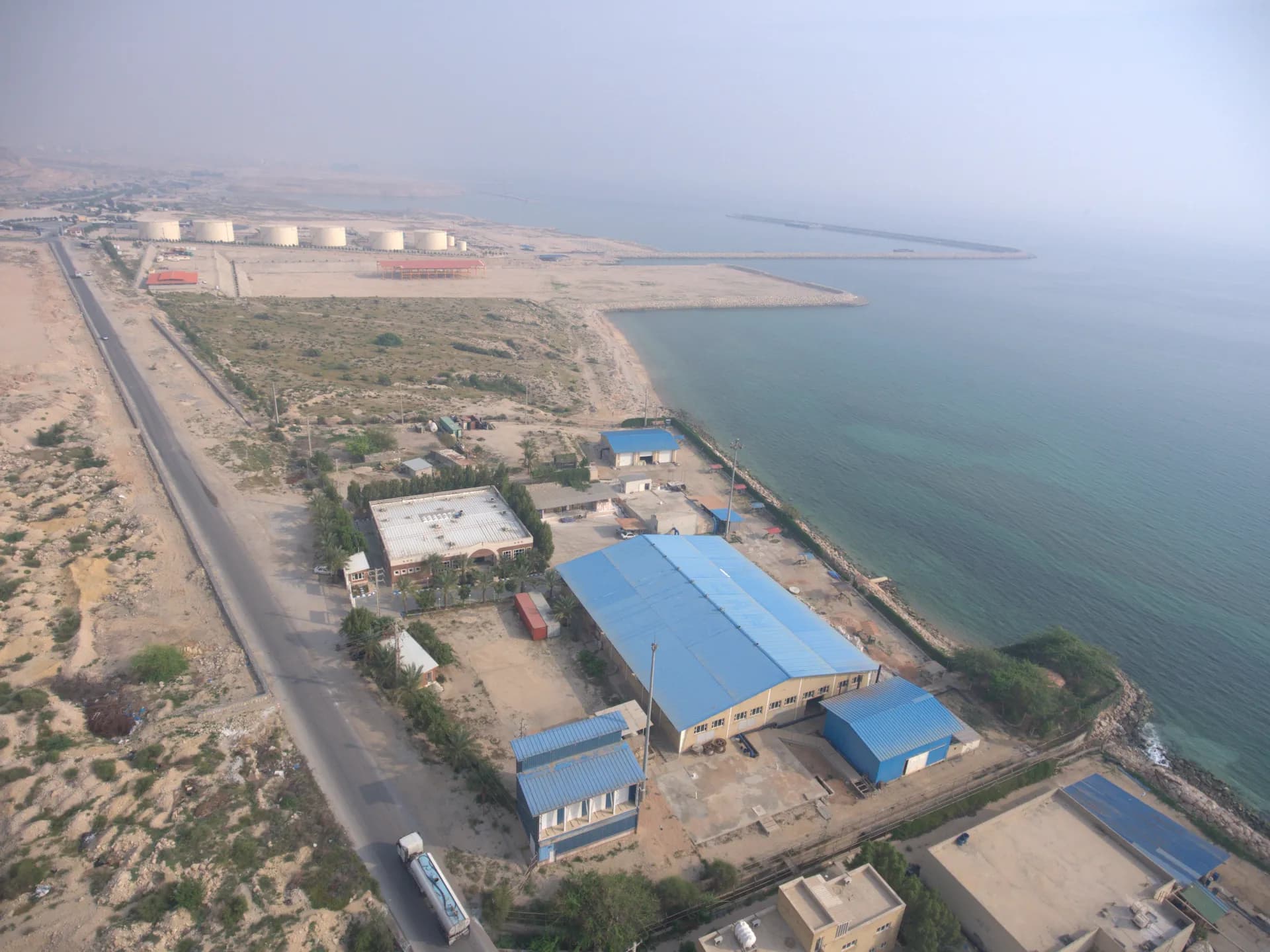

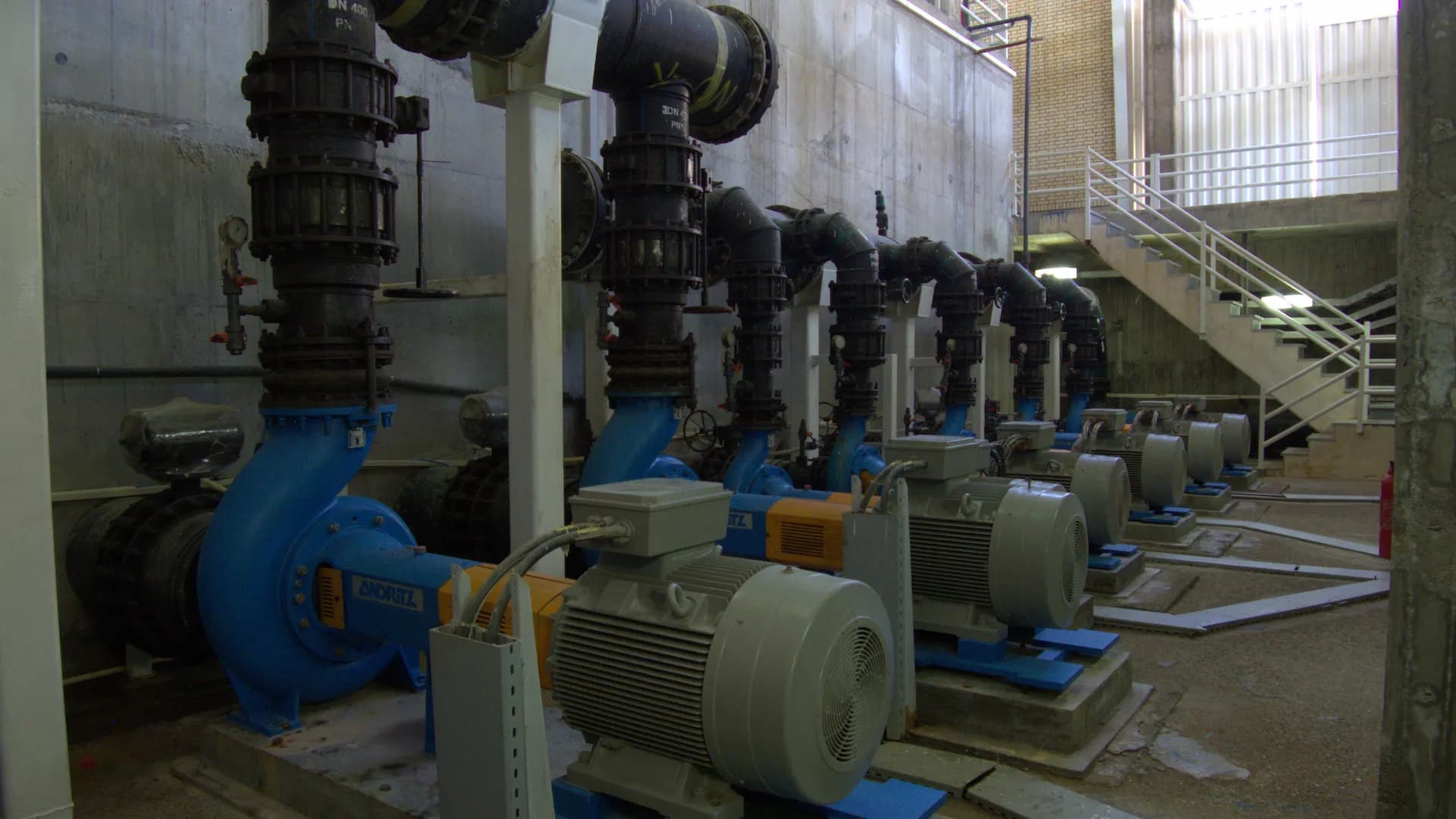

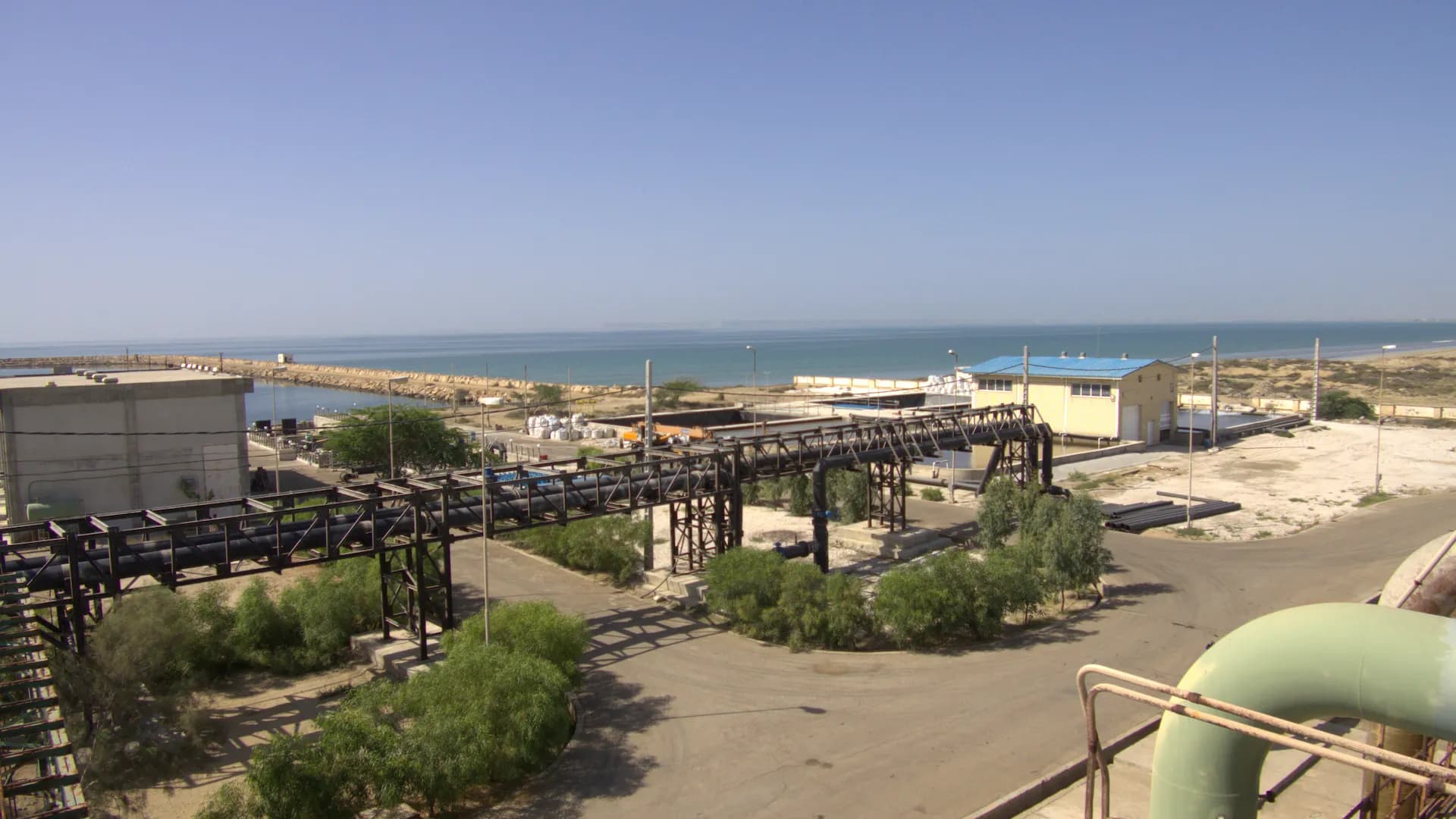

2. The feed water is supplied from the Oman sea via a direct intake system. After being dosed with a flocculant, it enters into gravity sand filters. The filtrate is stored in a tank, from where it is directed to cartridge filters and the SWRO units via a pumping station. The permeate from the RO units is transferred to a concrete tank by a pump station and transfer pipeline, and subsequently enters the Chabahar and Konarak water distribution network.

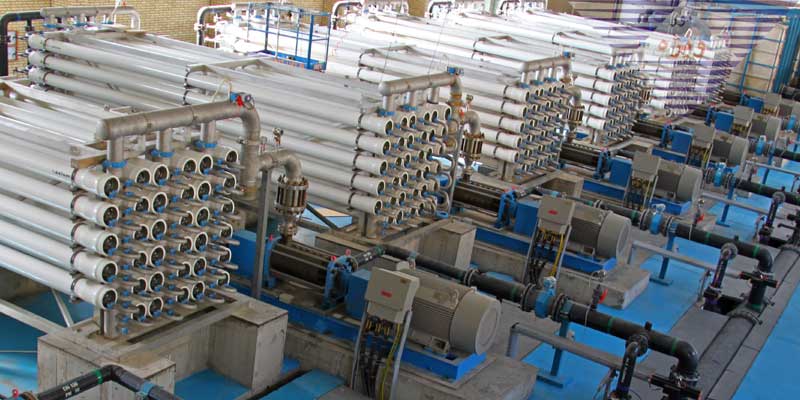

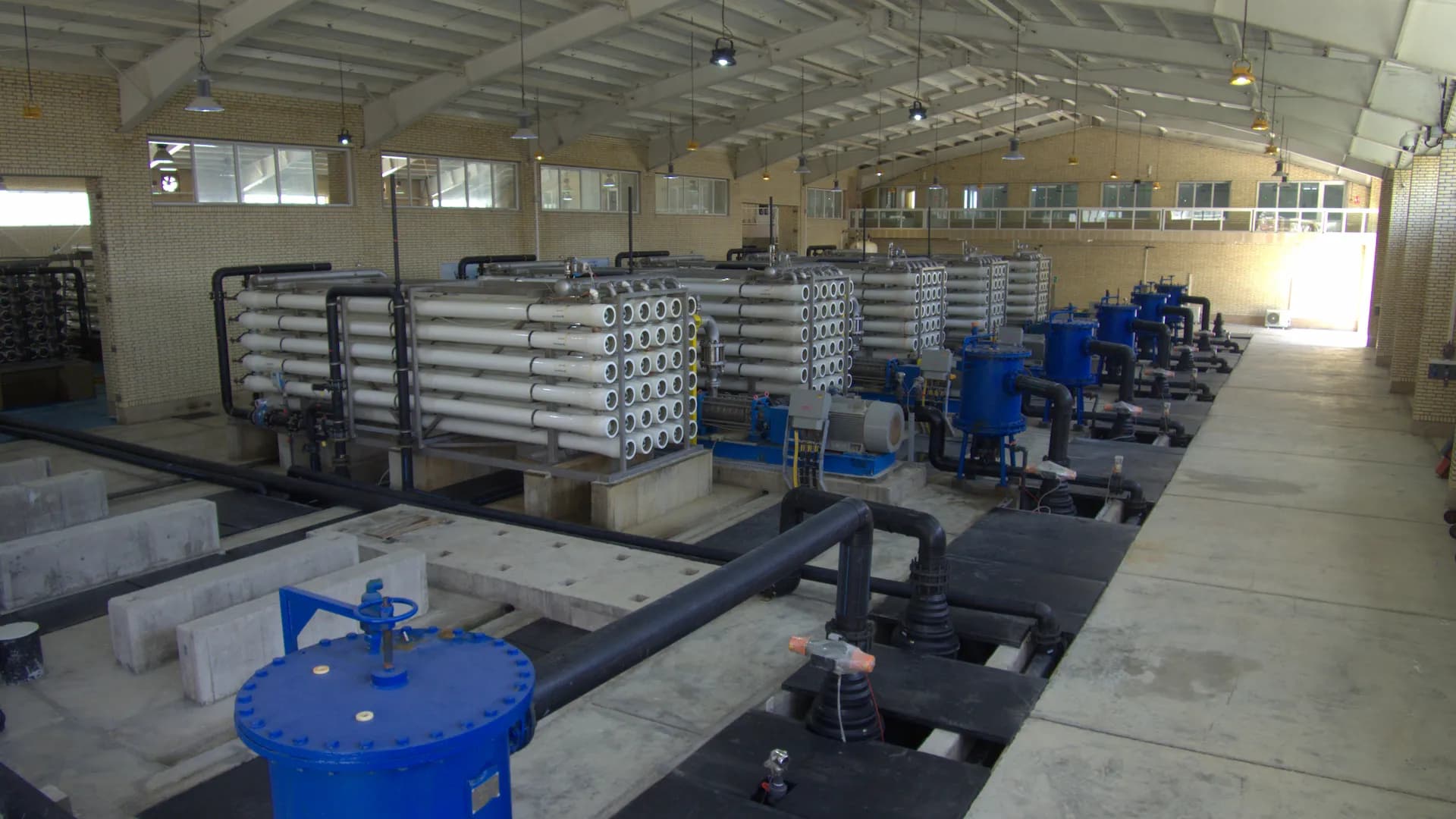

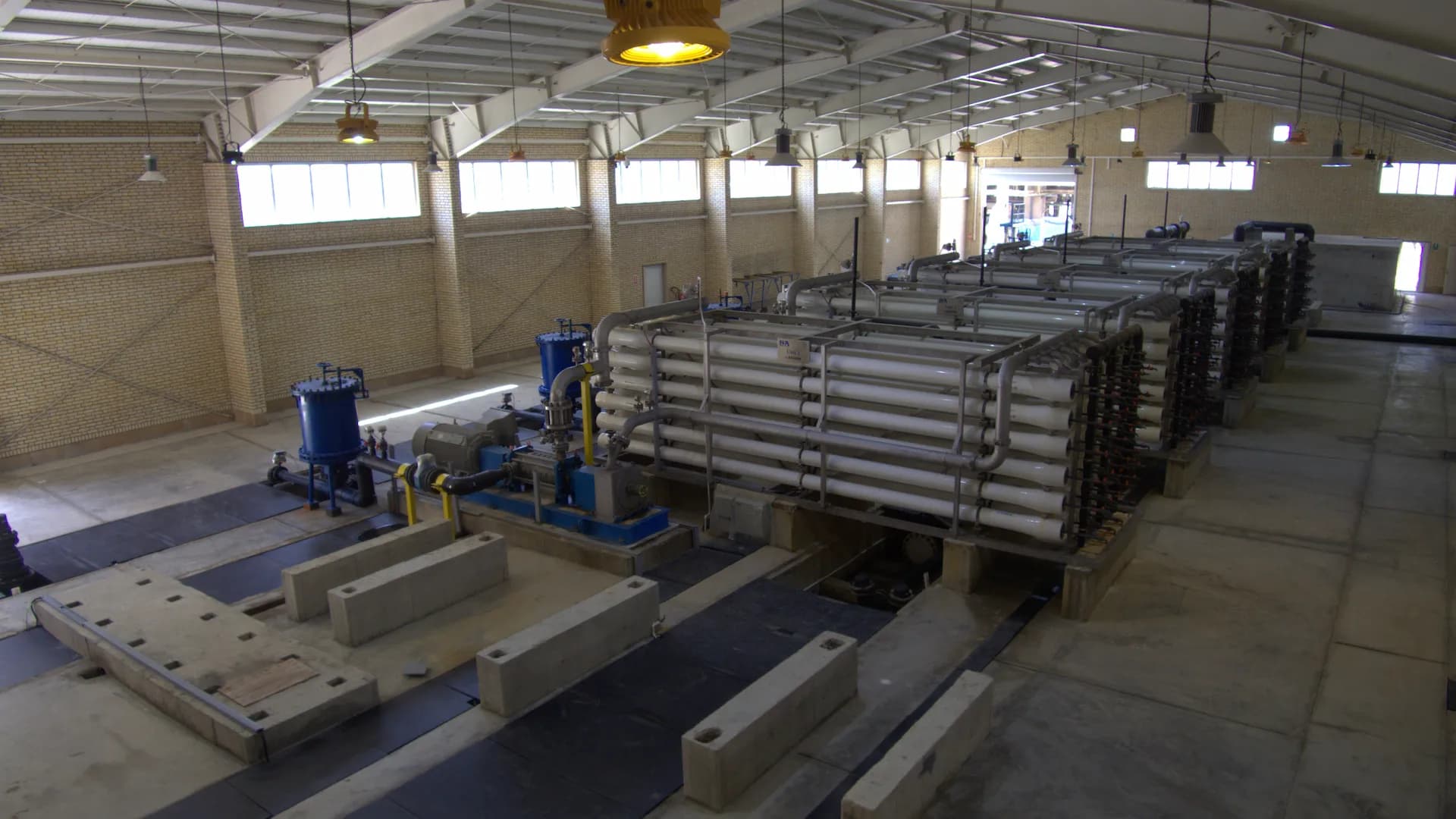

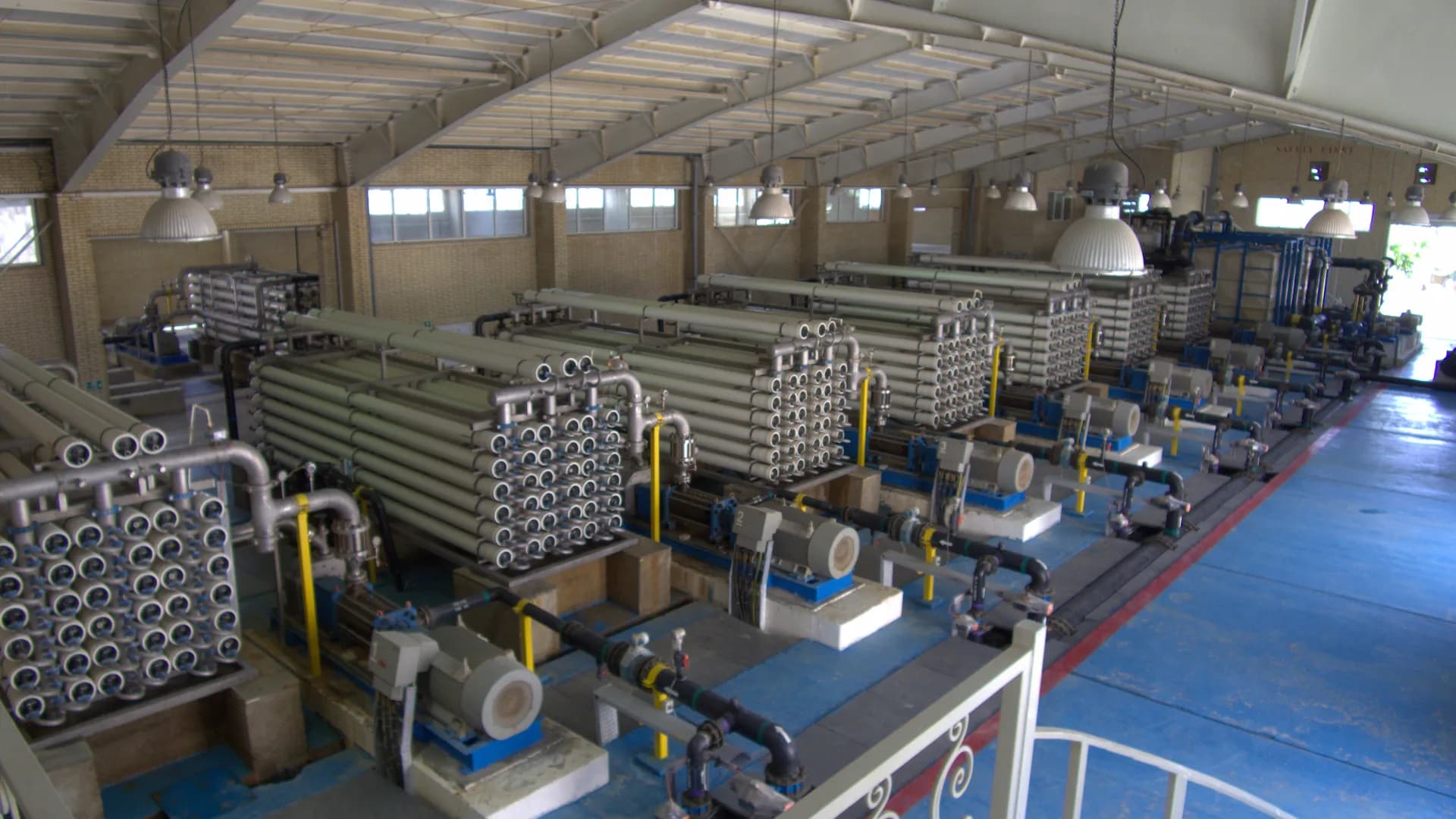

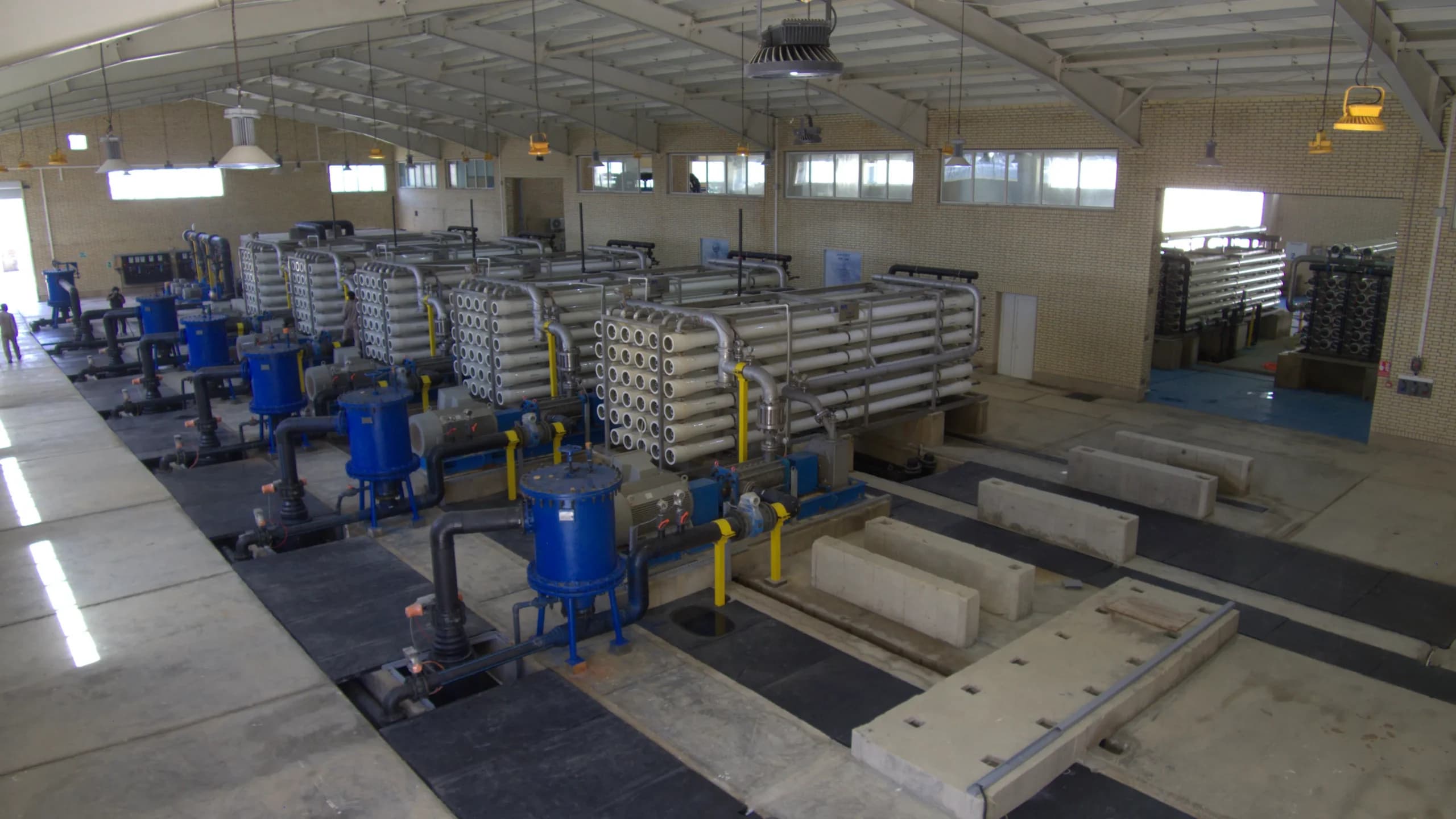

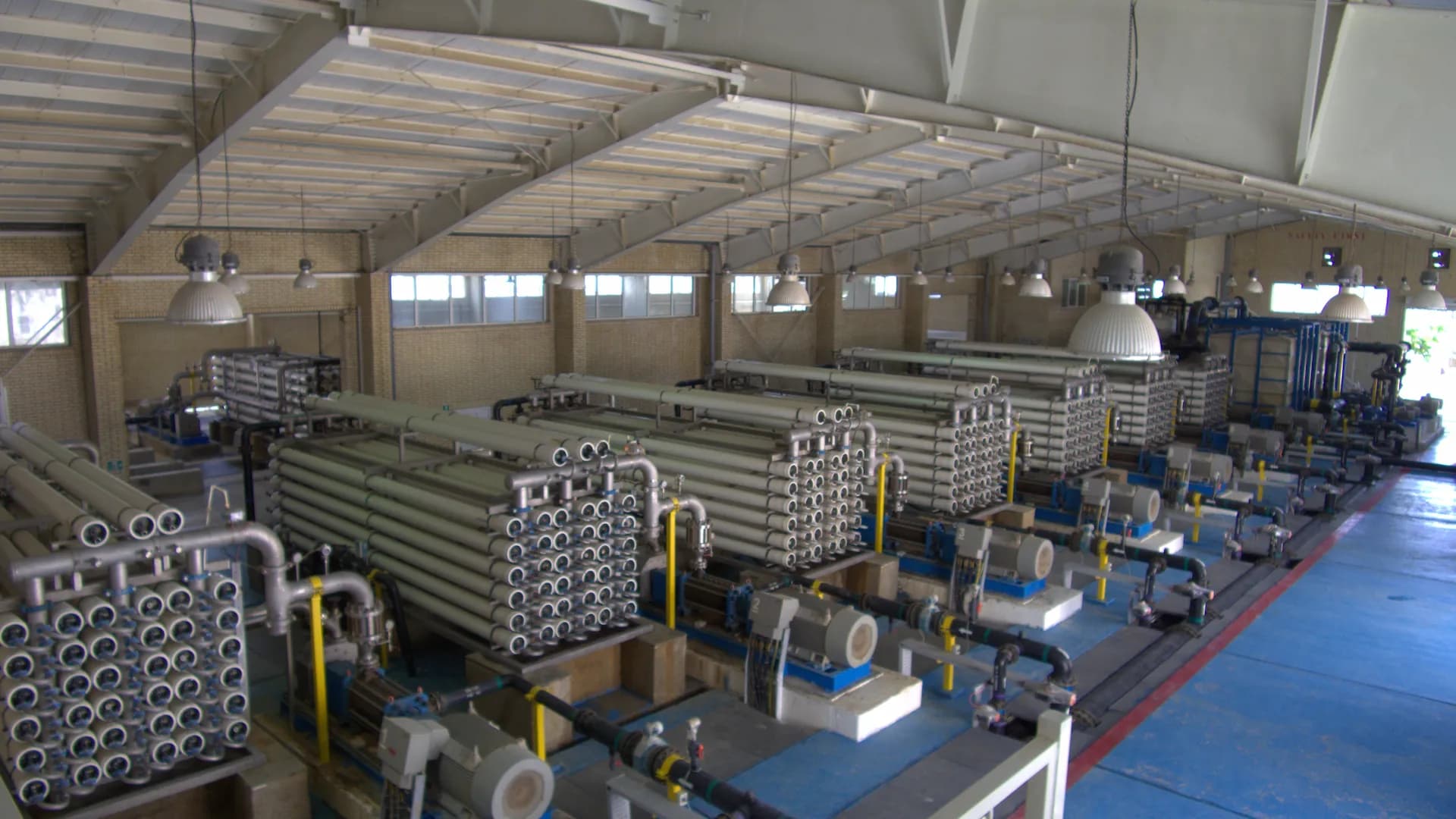

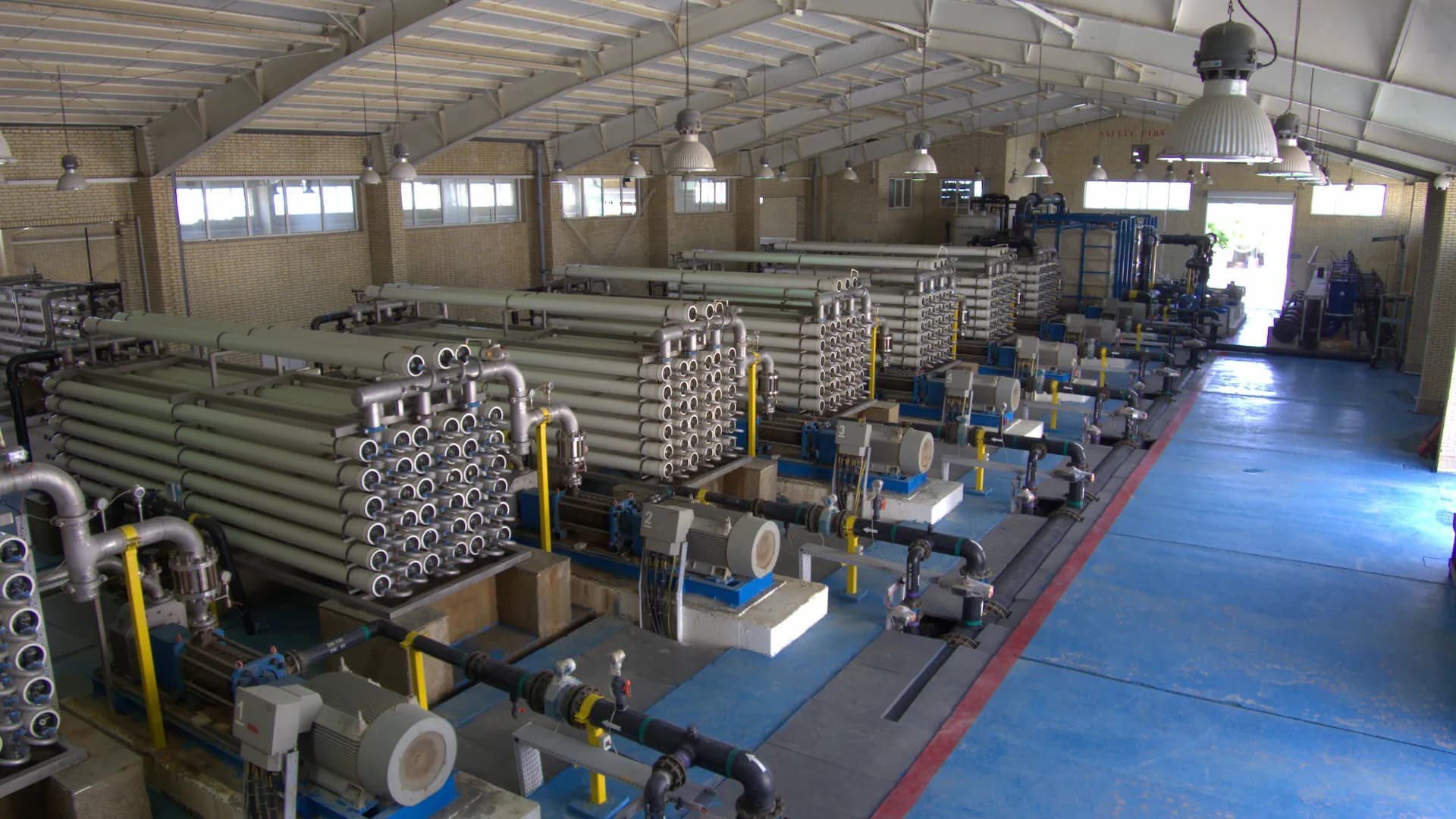

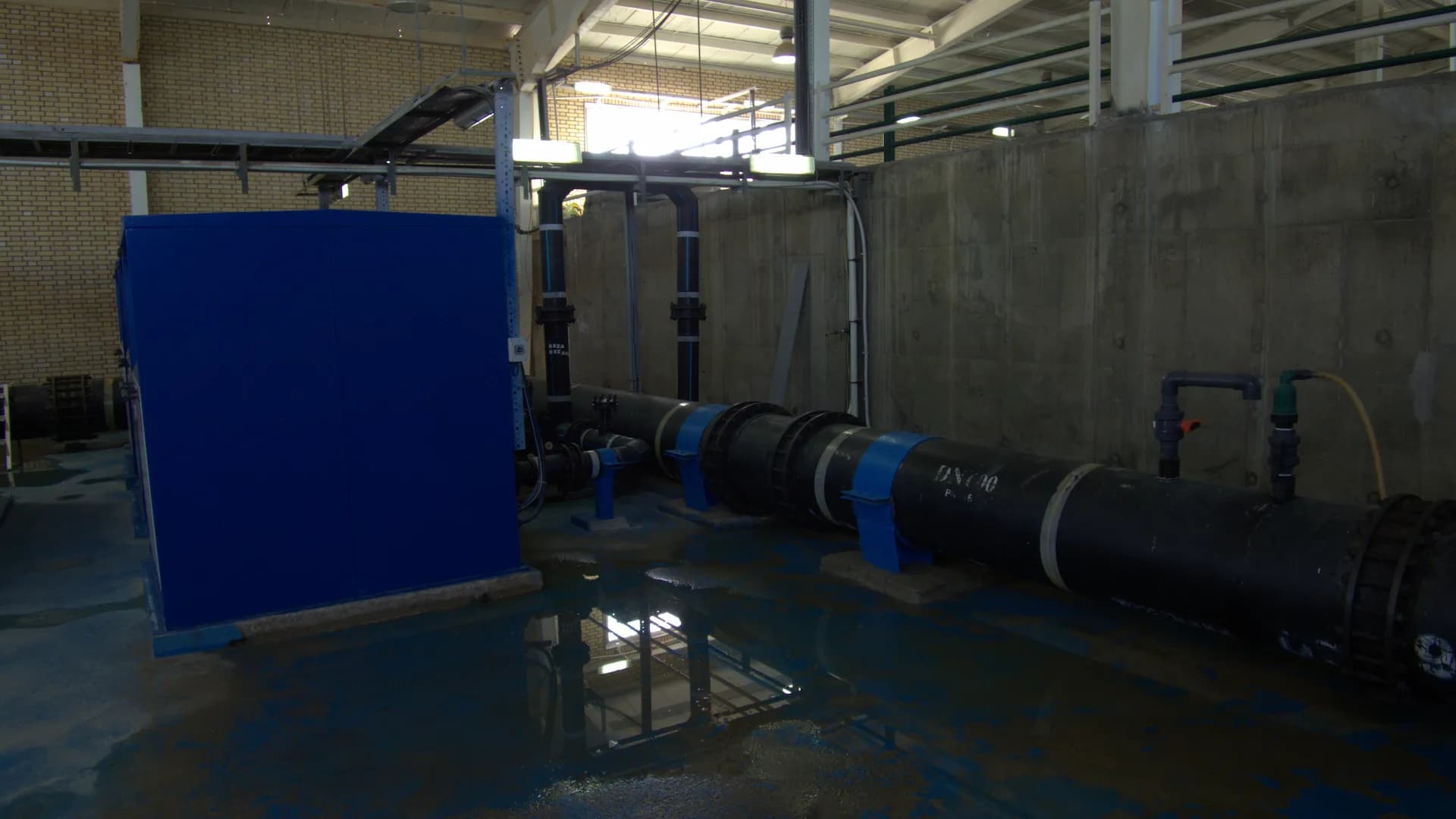

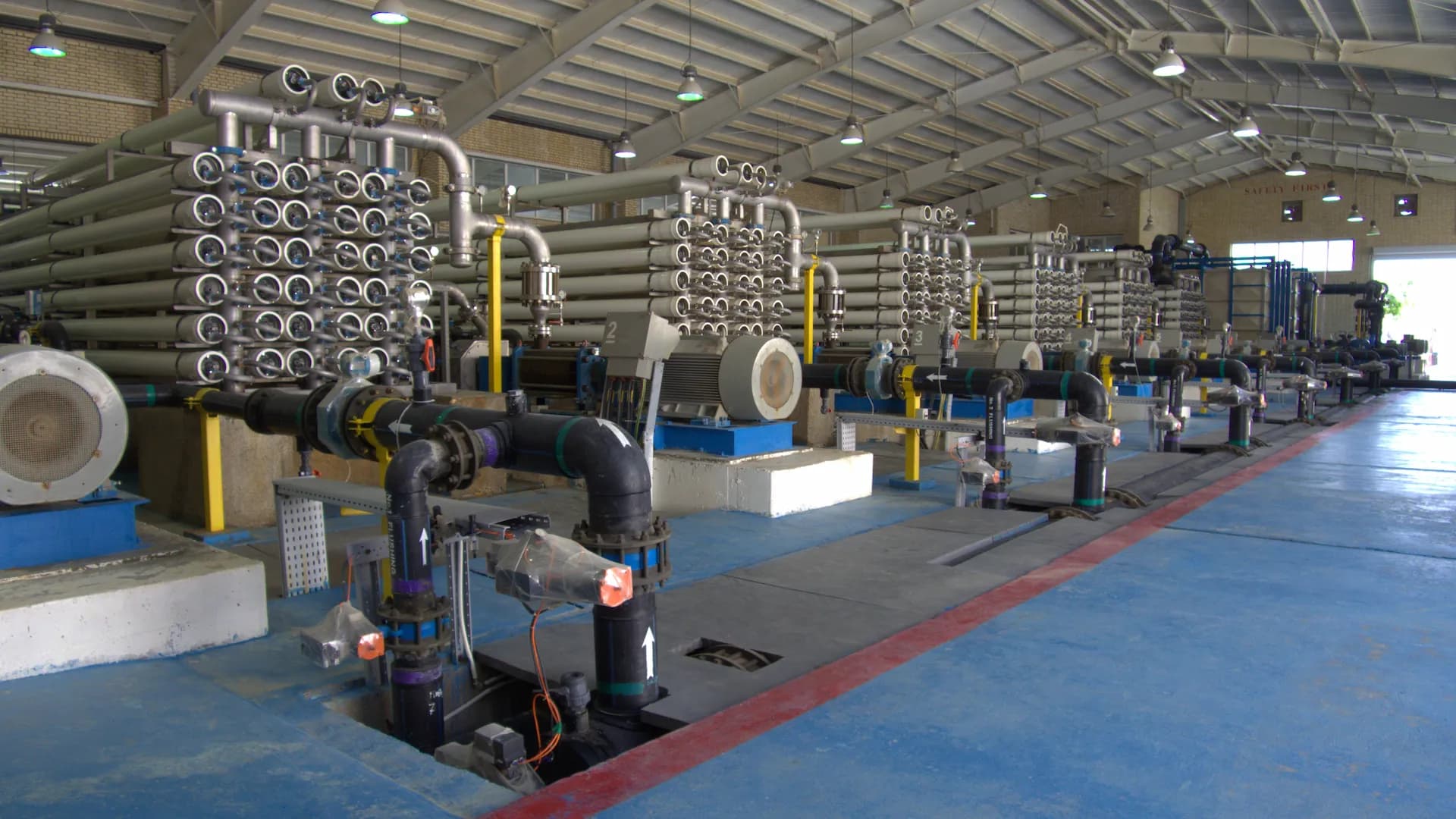

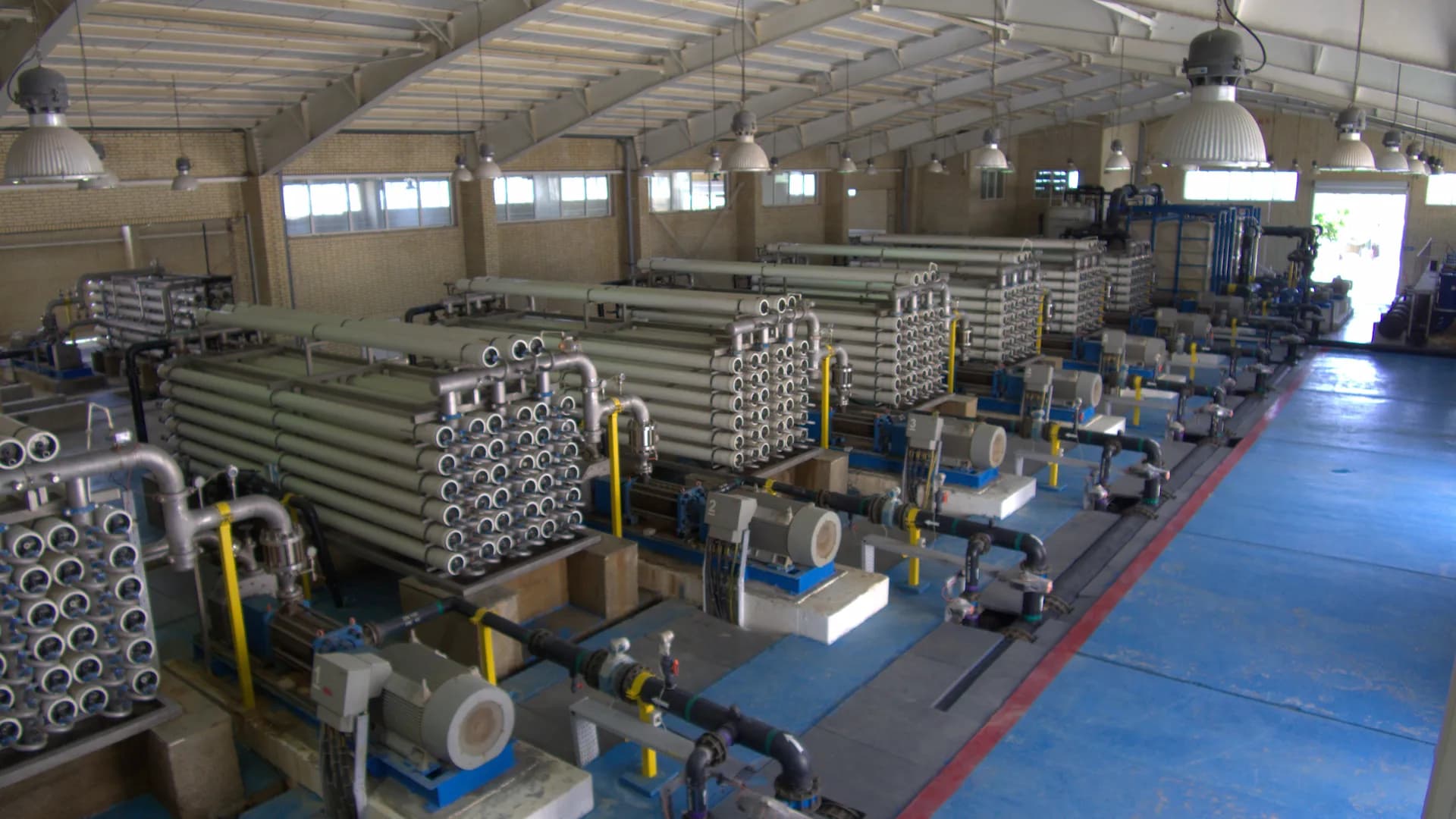

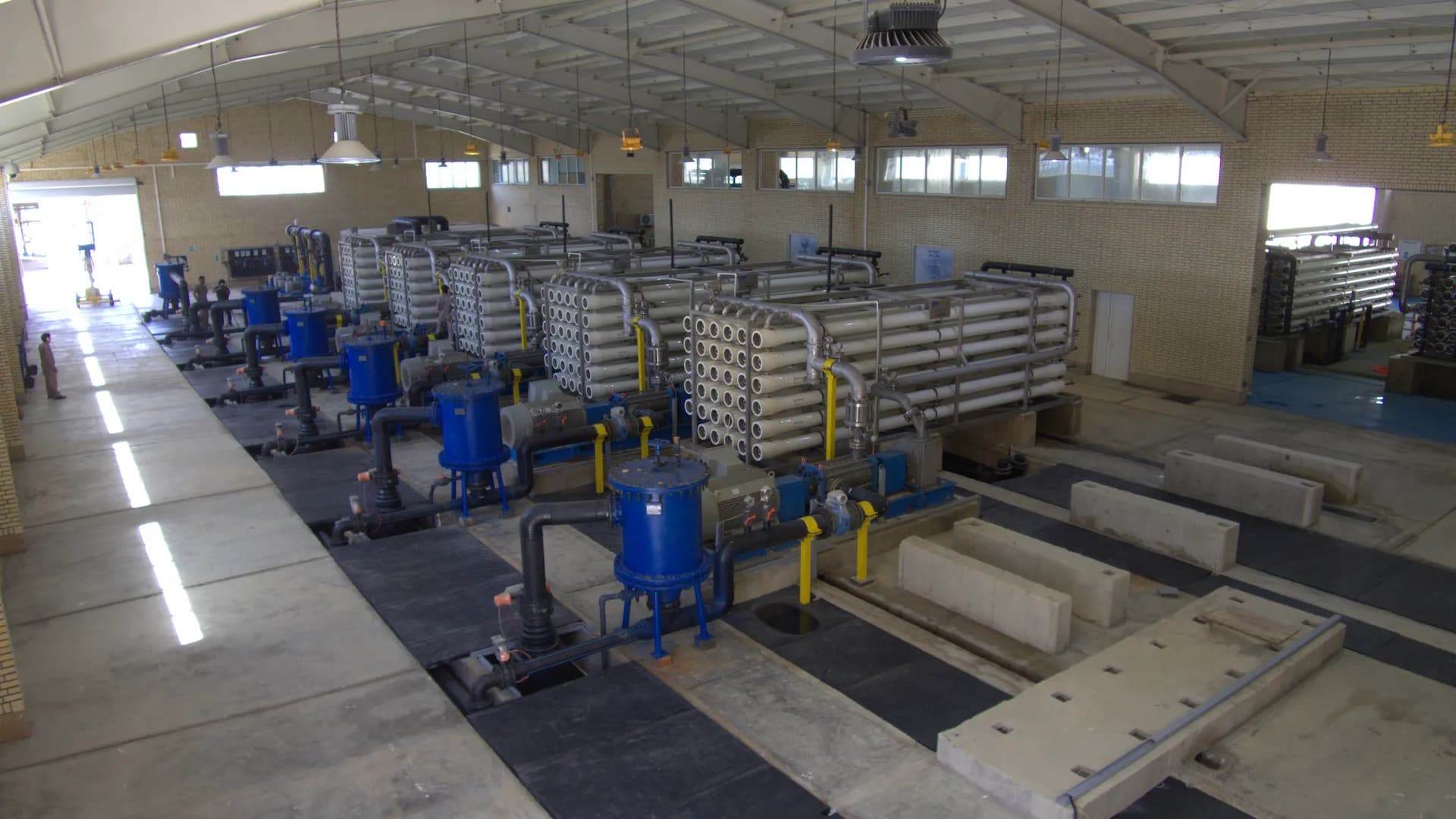

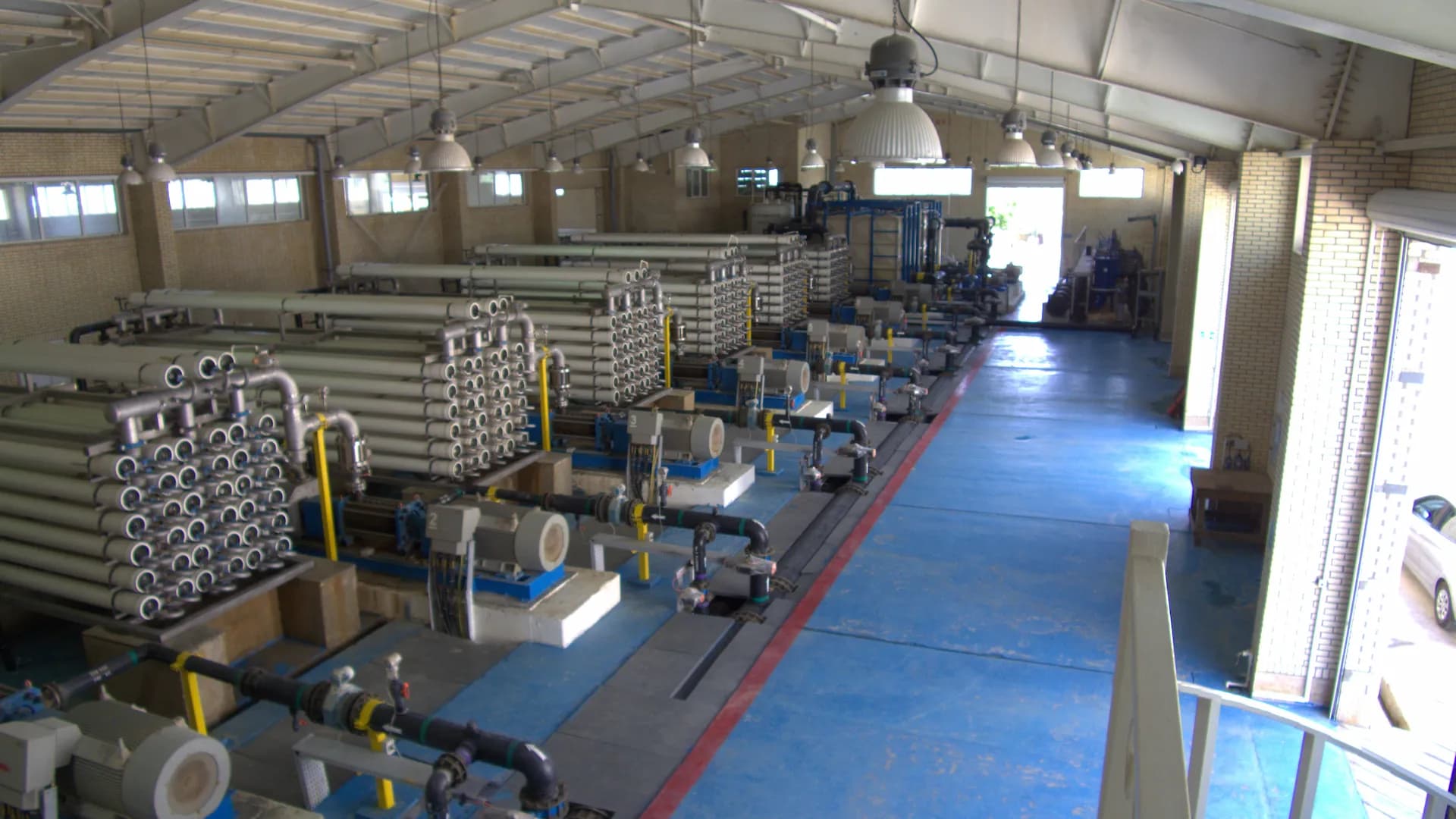

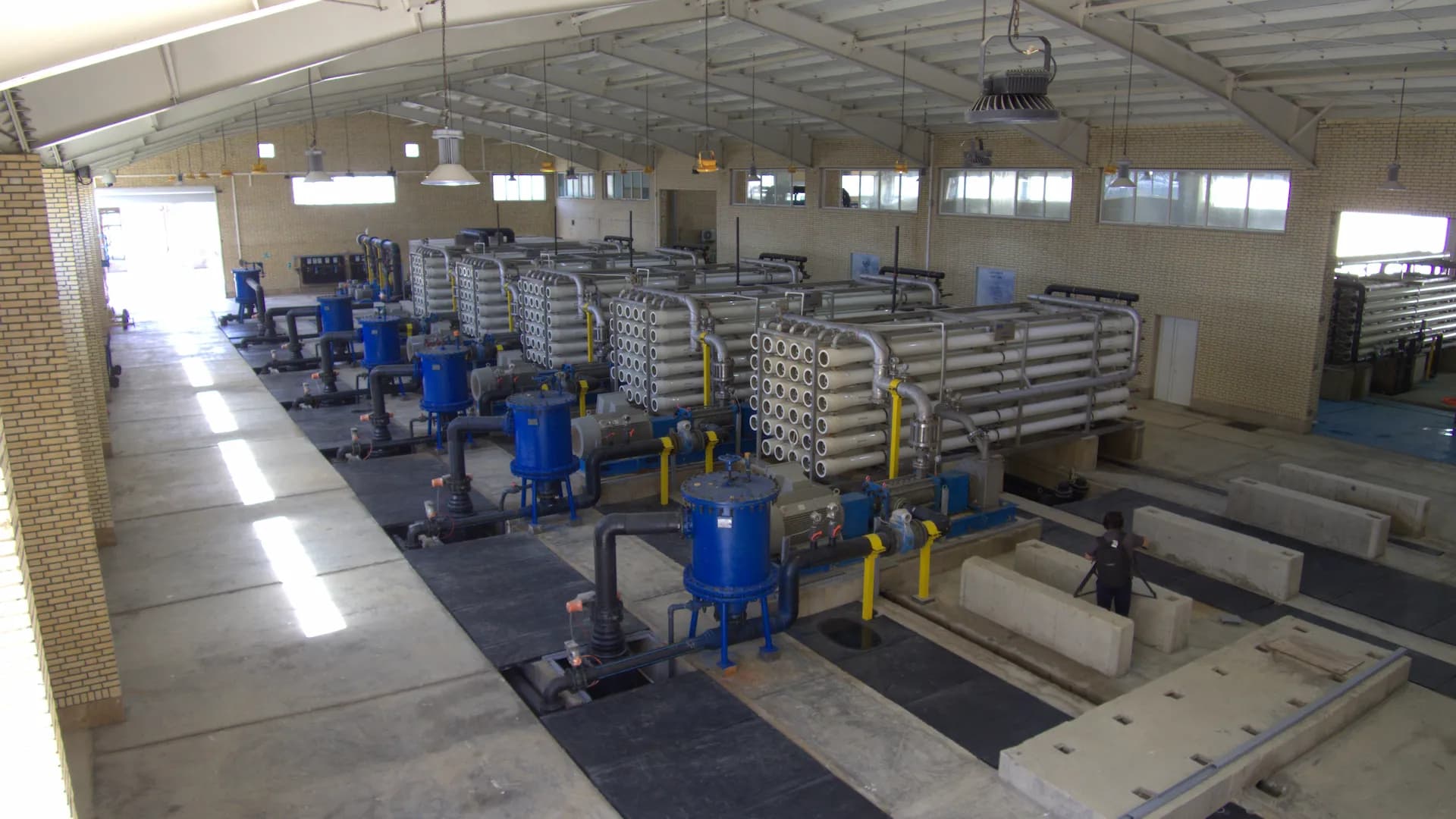

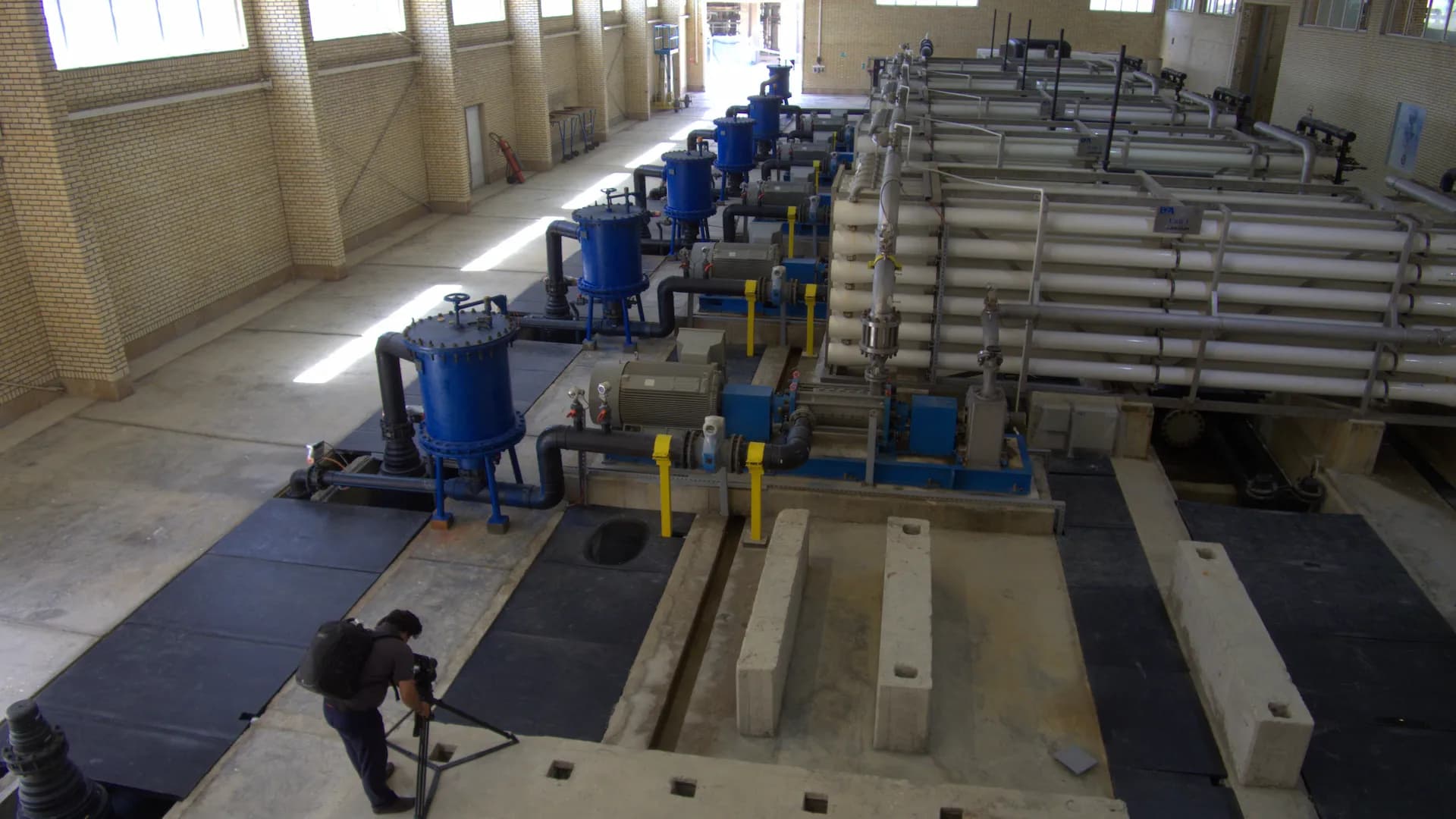

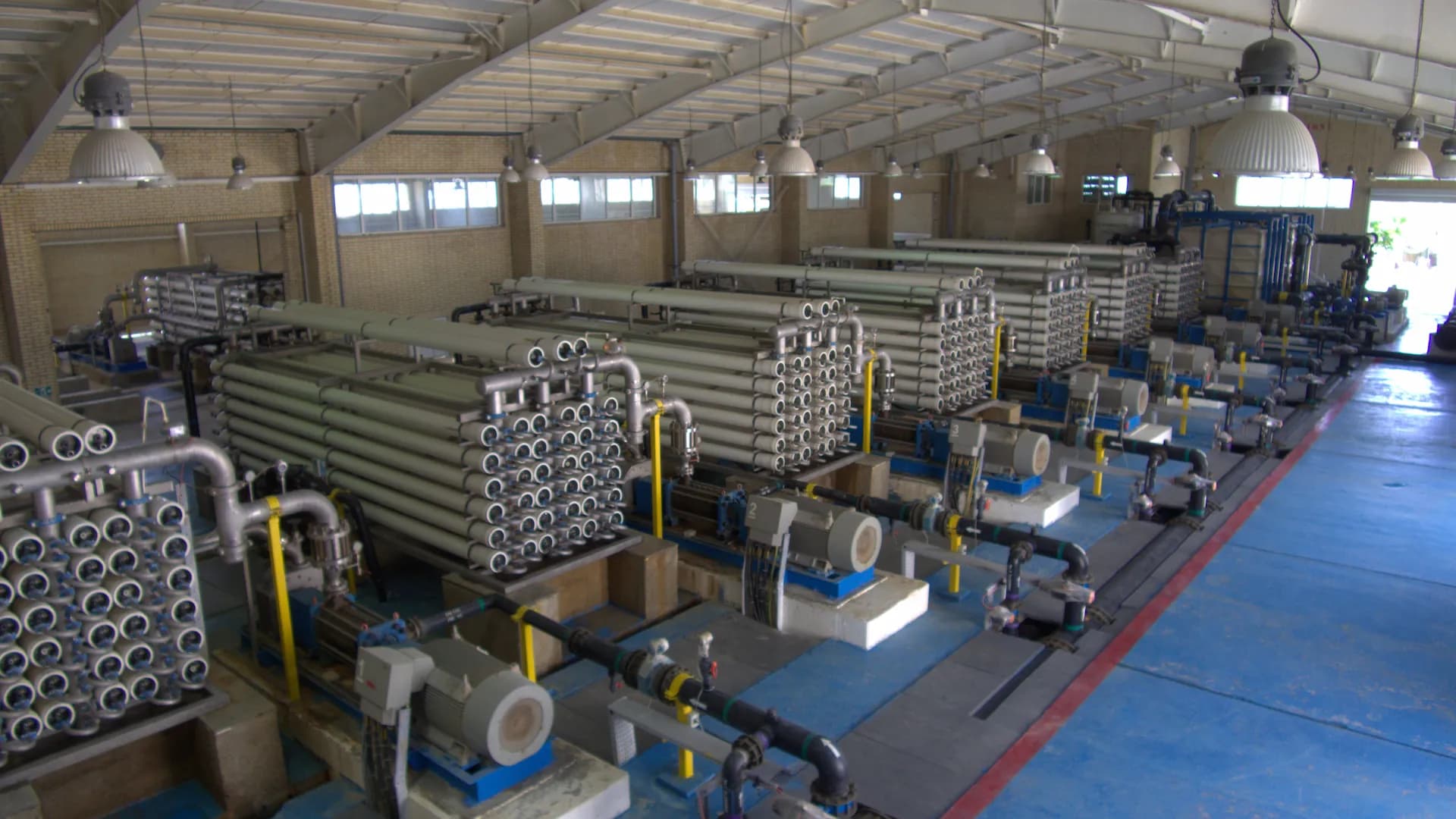

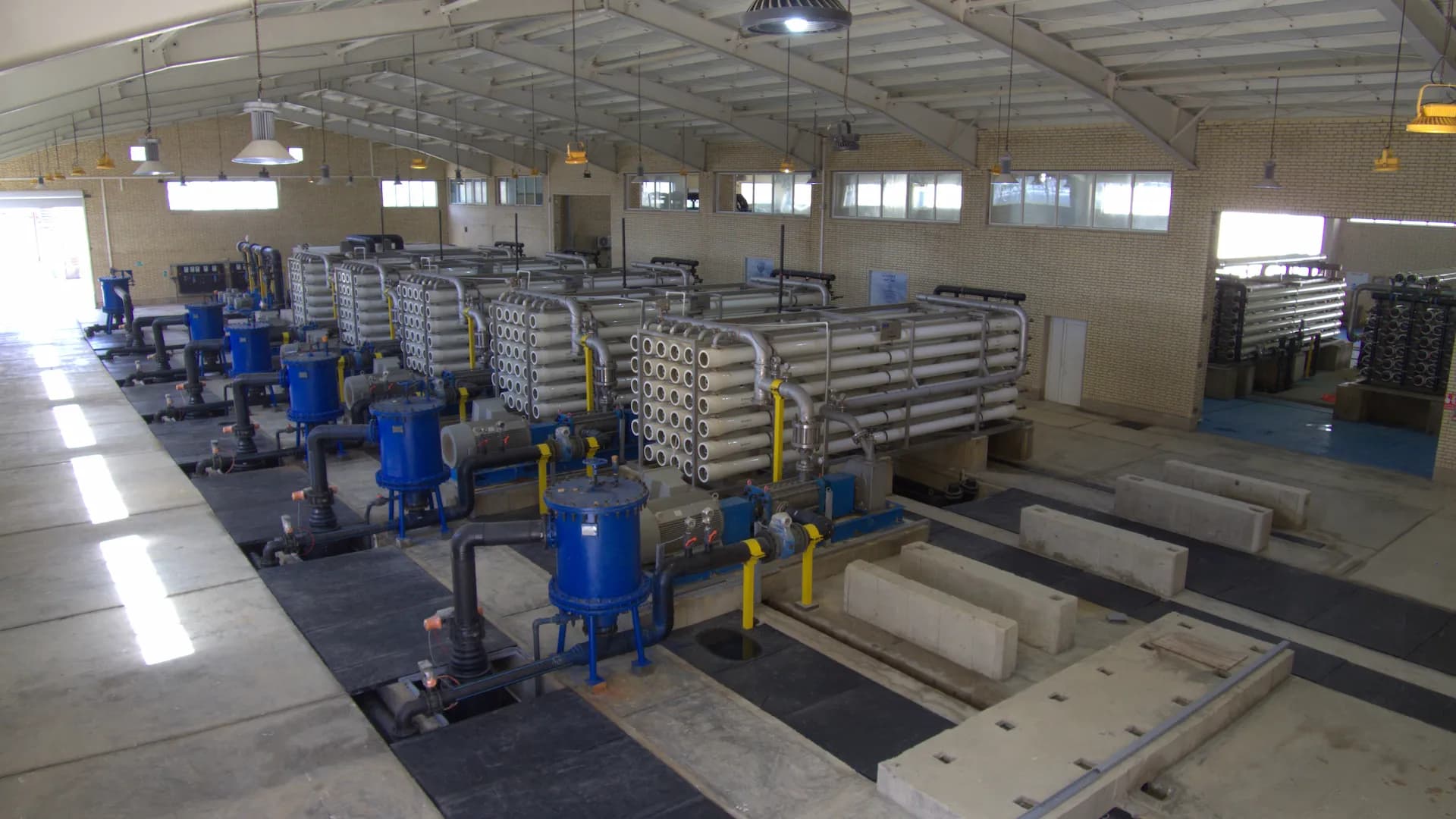

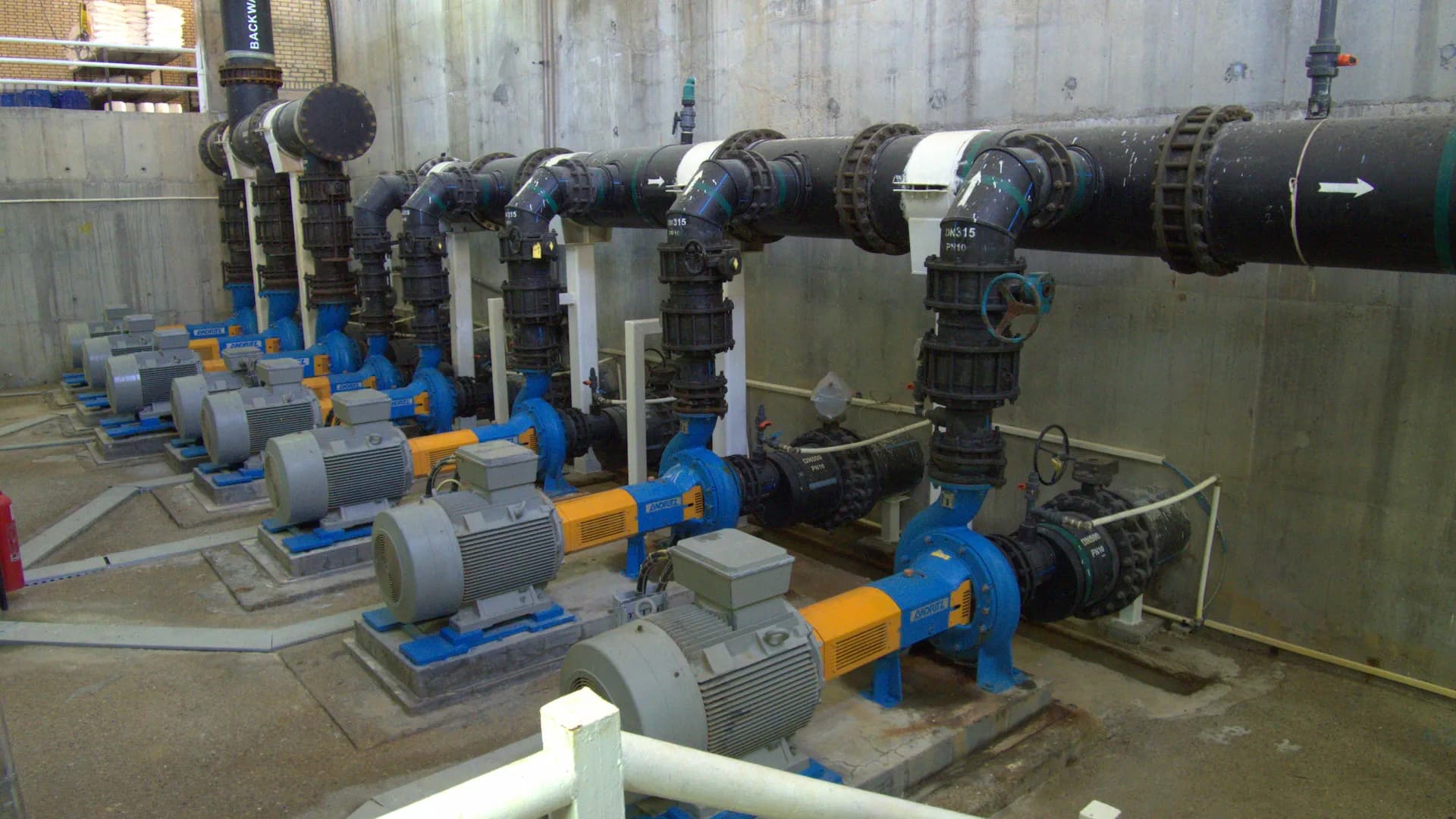

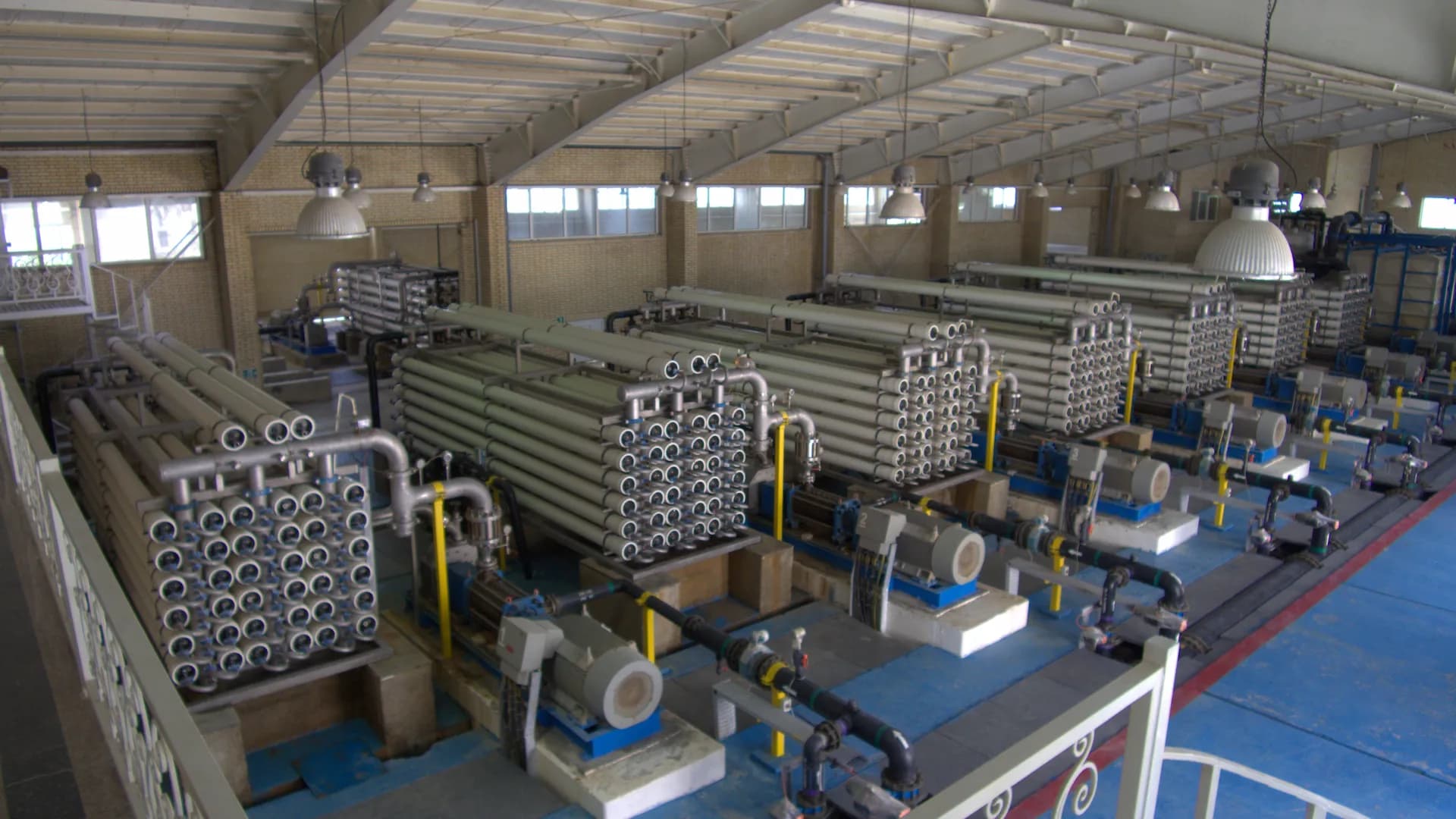

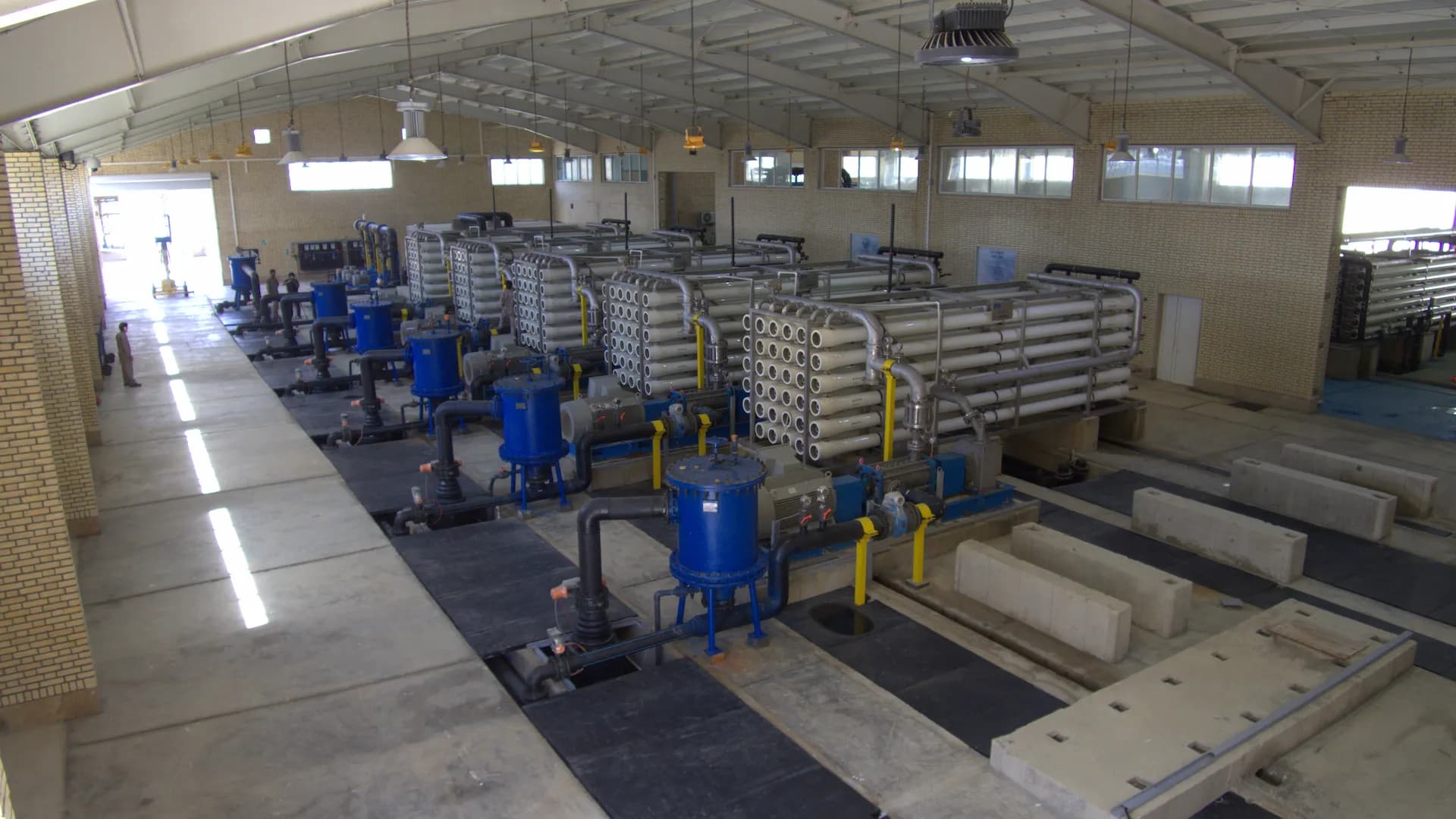

3. Main components: Direct intake system and piping, gravity sand filters, filtered water pump station and reservoir tank, chemical dosing unit, cartridge filters, high pressure pumps, pressure vessels and membranes, storage tanks, CIP unit, permeate water pumping station and pipeline.

4. Associated companies: The design and equipment are supplied by Axiom, Austria, and B2A, Austria. All other endeavors are carried out by NVCo.
