Bushehr

40,000 m3/day SWRO Desalination Plant



Phase I & II

Client Bushehr Province Water and Wastewater Company
Contract Supply of potable water to the city of Bushehr
Contract type B.O.O. (Build, Operate & Own)
Financing bank Export Development Bank of Iran
Contract awarded 2013
Startup date 2016
Contract period 15 years form start up
Contractual capacity 22,500 m3/day
Final capacity 25,000 m3/day



Phase IV

Client Bushehr Province Water and Wastewater Company
Contract Supply of potable water to the city of Bushehr
Contract type B.O.O. (Build, Operate & Own)
Financing bank Export Development Bank of Iran
Contract awarded 2020
Startup date 2022
Contract period 15 years form start up
Contractual capacity 17,000 m3/day
Final capacity 20,000 m3/day

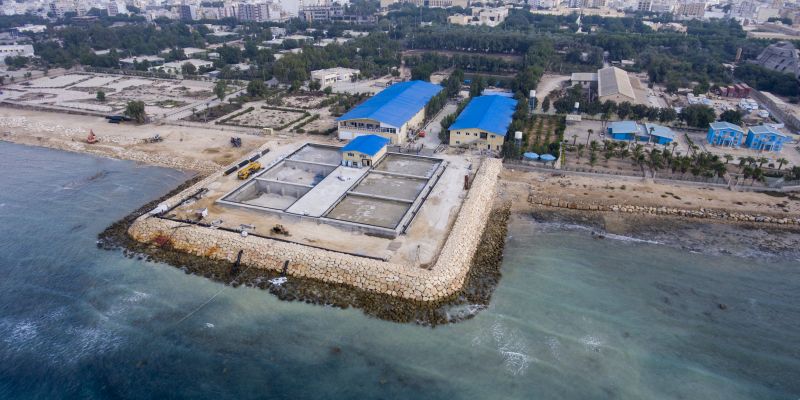

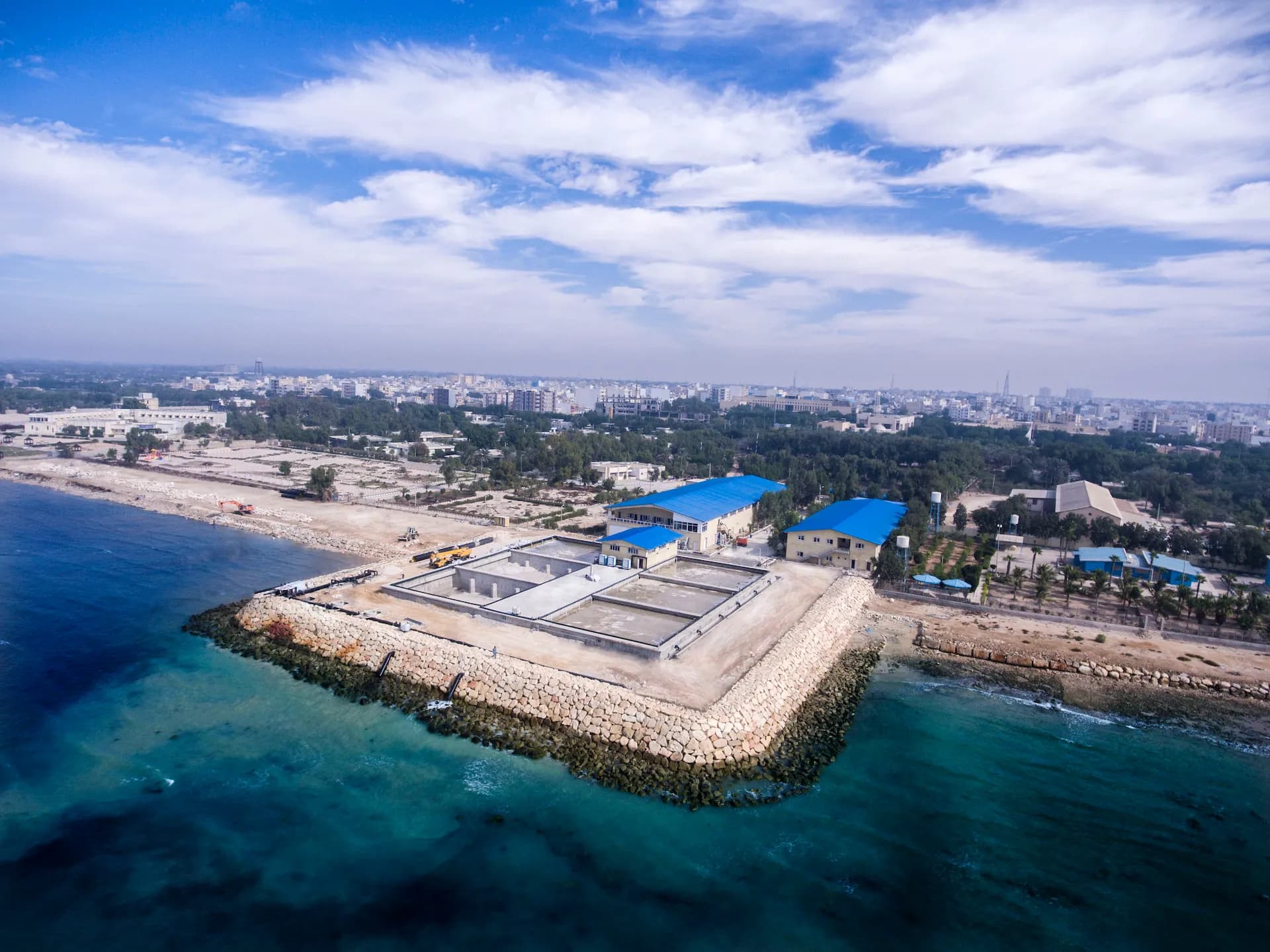

1. Project process: The feed water is taken from the Persian Gulf through an open intake system, is chlorinated, and subsequently sent to an extensive pretreatment unit via a transfer pipeline. The water is then stored in tanks. The filtered water in the tanks is sent to cartridge filters by a pumping station and conducted towards the SWRO units. In order to distribute the water to the city of Bushehr, a 7 km transfer pipeline is constructed from the concrete permeate tank to the city's water network.

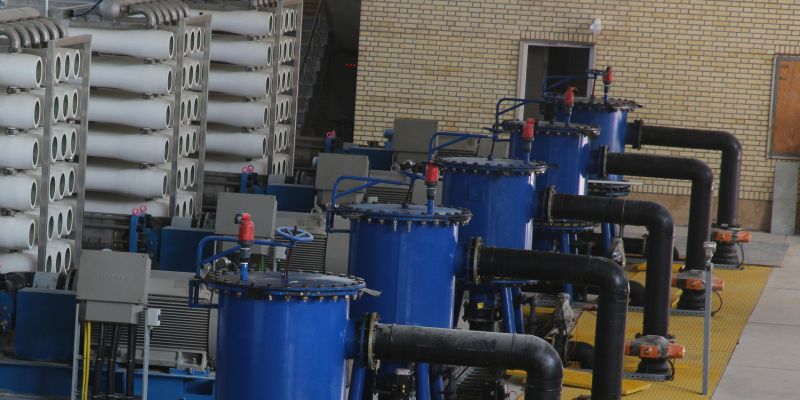

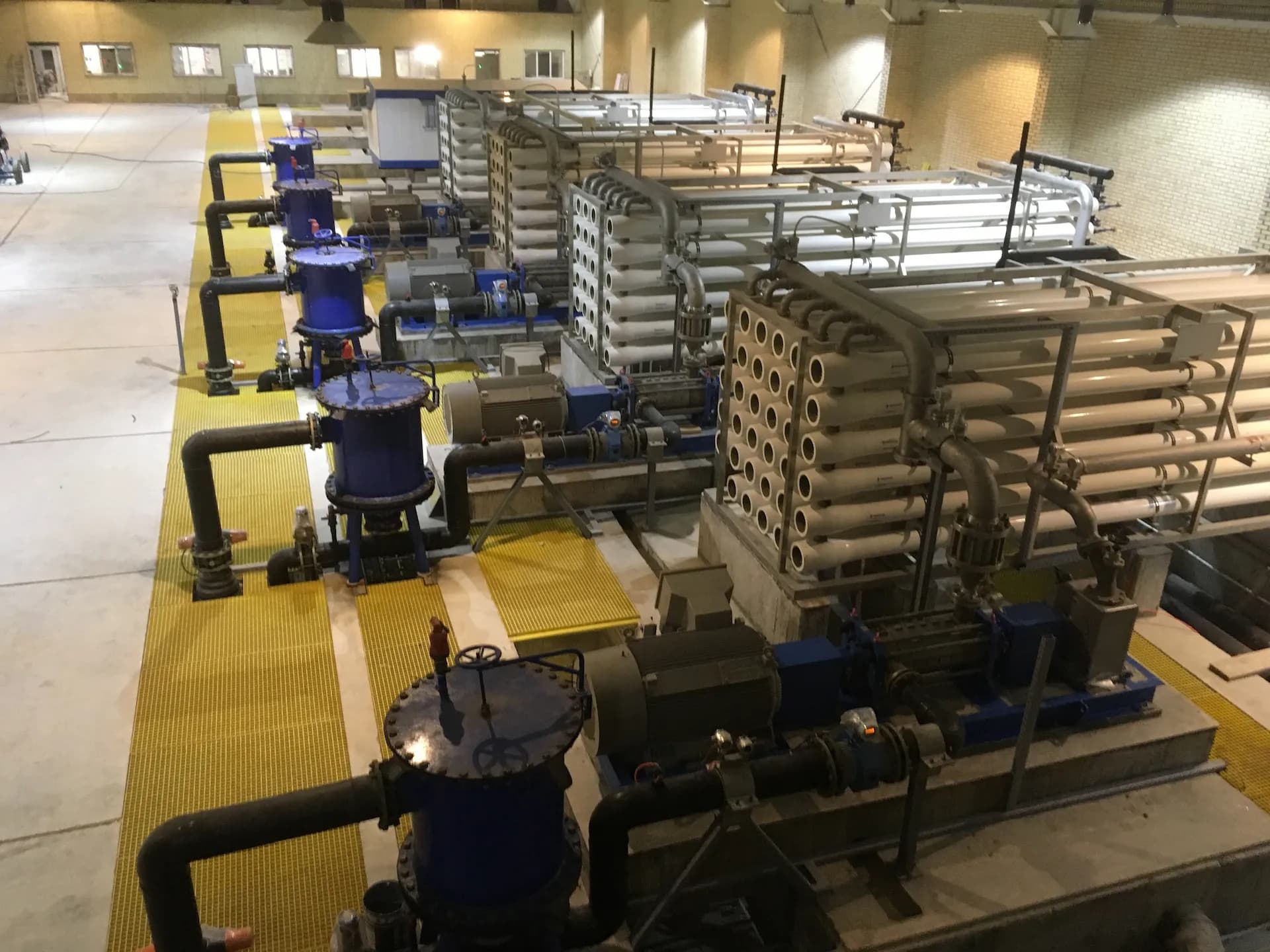

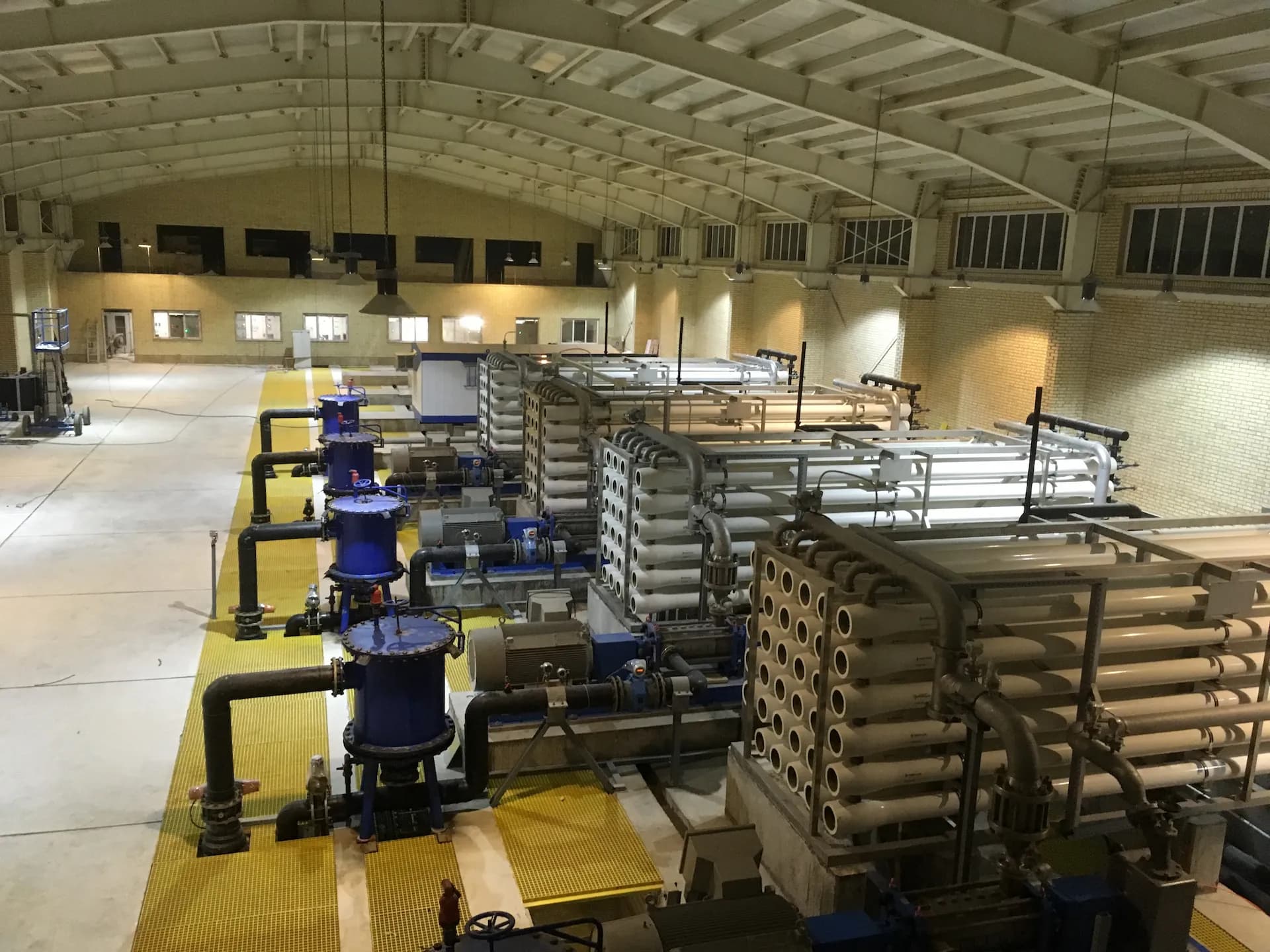

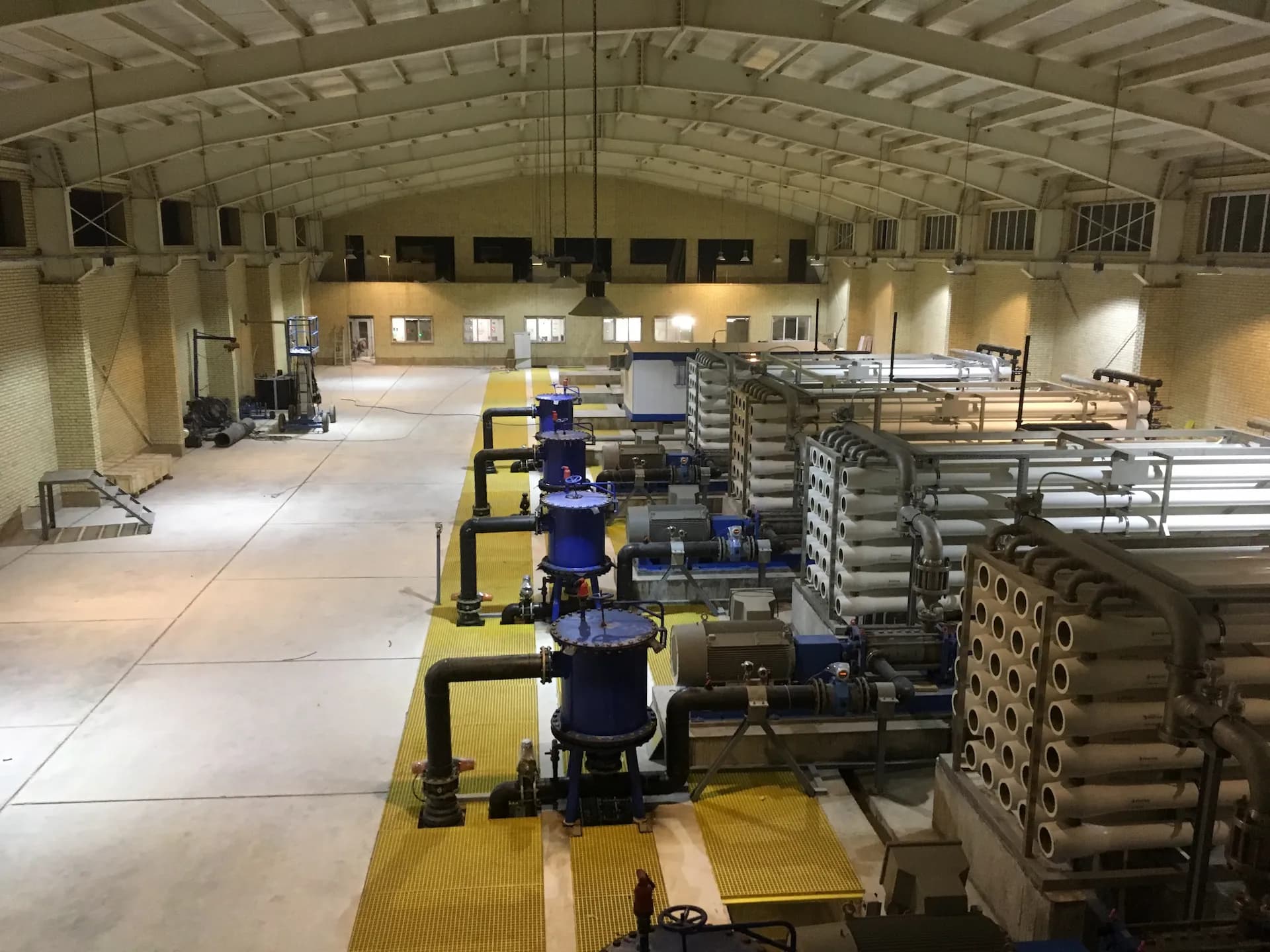

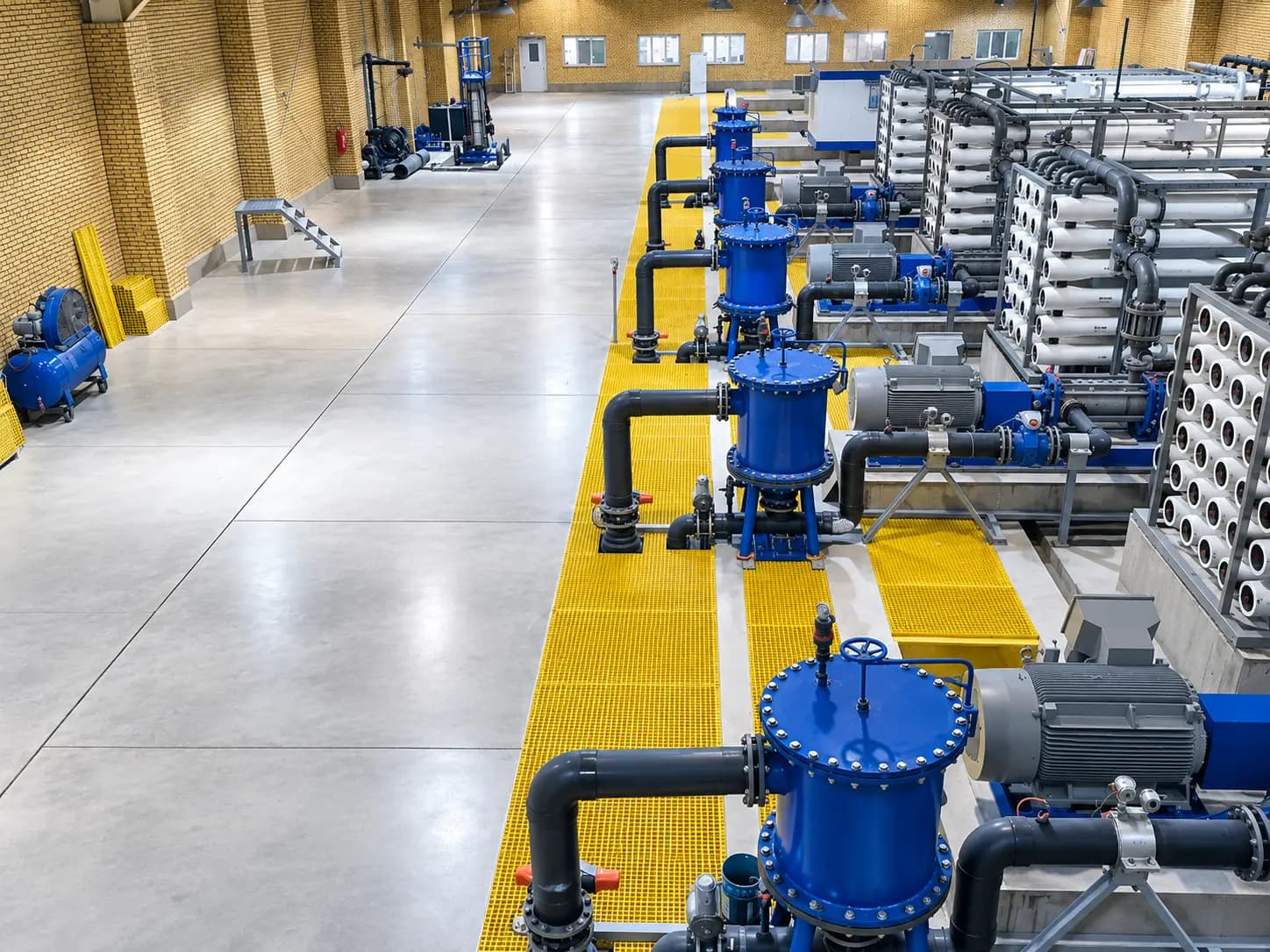

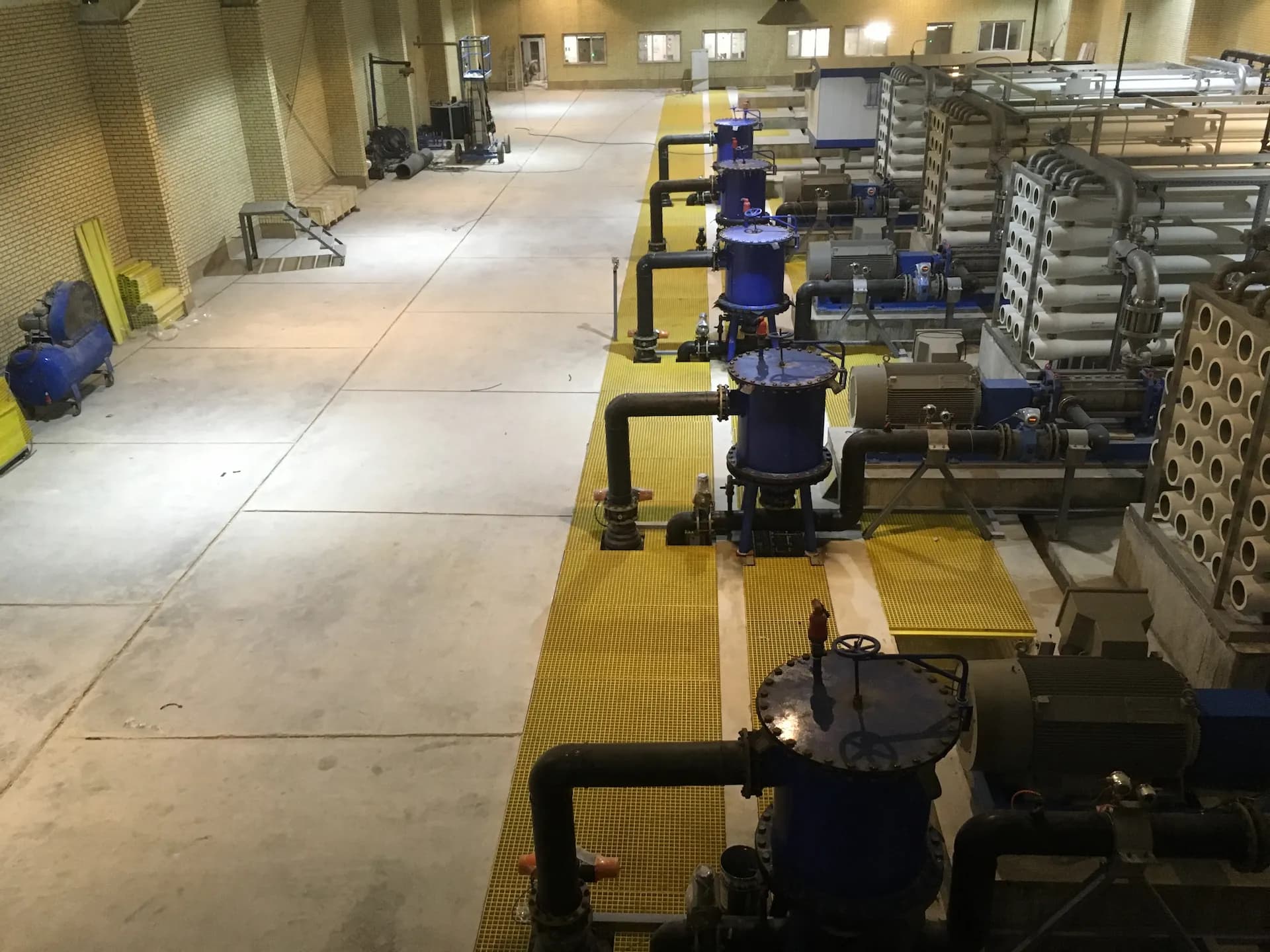

2. Main components: Open intake system, pretreatment, cartridge filters, high pressure pumps, pressure vessels and membranes, CIP unit, raw water and permeate storage tanks, chemical dosing unit, instrumentation and PLC system, sub-station, MV and LV panels.

3. Associated companies: The design and equipment are supplied by Axiom and B2A, Austria. All other endeavors are carried out by NVCo.
